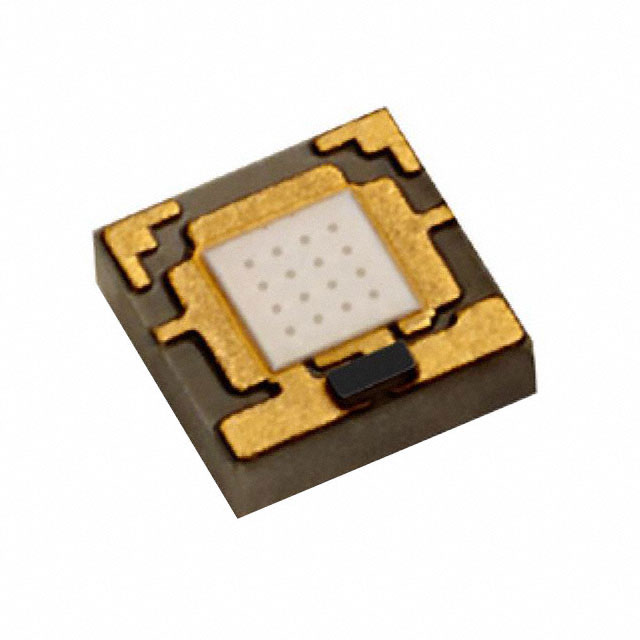

L1CU-GRN1000000000

Active

Lumileds

A GREEN CCT 520NM-540NM CRI N/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLUXEON CZ Brief Datasheet

L1CU-GRN1000000000

Active

Lumileds

A GREEN CCT 520NM-540NM CRI N/A

Deep-Dive with AI

DocumentsLUXEON CZ Brief Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L1CU-GRN1000000000

Color	Green
Current - Max [Max]	1.05 A
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	0.92 mm
Height - Seated (Max) [Max] [z]	0.036 in
Lumens/Watt @ Current - Test	93 lm/W
Luminous Flux @ Current/Temperature	99 lm
Mounting Type	Surface Mount
Package / Case	3-SMD, No Lead
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	3-SMD
Temperature - Test	85 °C
Thermal Resistance of Package [custom]	4 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.05 V
Wavelength	530 nm
Wavelength [Max]	540 nm
Wavelength [Min]	520 nm

L1CU Series

Part	Color	Viewing Angle	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Package / Case	Current - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Temperature - Test	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Lumens/Watt @ Current - Test	Wavelength [Min]	Wavelength [Max]	Wavelength	CCT (K)	Thermal Resistance of Package	Flux @ 85°C, Current - Test	CRI (Color Rendering Index)	Thermal Resistance of Package [custom]
Lumileds L1CU-FRD1000000000	Red	120 °	0.92 mm	0.036 in	2-SMD	2-SMD No Lead Exposed Pad	350 mA	280 mW	150 mW	240 mW	85 °C	Surface Mount	2 mm	2 mm	0.079 in	0.079 in	1.9 V	1.05 A
Lumileds L1CU-RNG1000000000	Red-Orange	120 °	0.92 mm	0.036 in	SMD	2-SMD No Lead Exposed Pad	350 mA			34 lm	85 °C	Surface Mount	2 mm	2 mm	0.079 in	0.079 in	2.05 V	1.05 A	47 lm/W	614 nm	624 nm	619 nm
Lumileds L1CU-4070000000000	Neutral White	120 °	0.92 mm	0.036 in	2-SMD	2-SMD No Lead Exposed Pad	350 mA					Surface Mount	2 mm	2 mm	0.079 in	0.079 in	2.75 V	1.225 mA	113 lm/W				4000 K	3.2 °C/W	109 lm	70
Lumileds L1CU-3590000000000	Warm White	120 °	0.92 mm	0.036 in	2-SMD	2-SMD No Lead Exposed Pad	350 mA					Surface Mount	2 mm	2 mm	0.079 in	0.079 in	2.75 V	1.225 mA	89 lm/W				3500 K	3.2 °C/W	86 lm	90
Lumileds L1CU-2780000000000	Warm White	120 °	0.92 mm	0.036 in	3-SMD	3-SMD No Lead	350 mA					Surface Mount	2 mm	2 mm	0.079 in	0.079 in	2.75 V	1.225 A					2700 K			80
Lumileds L1CU-DRD1000000000	Red	120 °	0.92 mm	0.036 in	2-SMD	2-SMD No Lead Exposed Pad	350 mA			260 mW	85 °C	Surface Mount	2 mm	2 mm	0.079 in	0.079 in	2.05 V	700 mA
Lumileds L1CU-5770000000000	Cool White	120 °	0.92 mm	0.036 in	3-SMD	3-SMD No Lead	350 mA					Surface Mount	2 mm	2 mm	0.079 in	0.079 in	2.75 V	1.225 A	133 lm/W				5700 K	3.2 °C/W	110 lm	70
Lumileds L1CU-6570000000000	Cool White	120 °	0.92 mm	0.036 in	3-SMD	3-SMD No Lead	350 mA					Surface Mount	2 mm	2 mm	0.079 in	0.079 in	2.75 V	1.225 A					6500 K			70
Lumileds L1CU-AMB1000000000	Amber	120 °	0.92 mm	0.036 in	2-SMD	2-SMD No Lead Exposed Pad	350 mA			16 lm	85 °C	Surface Mount	2 mm	2 mm	0.079 in	0.079 in	2.05 V	1.05 A	22 lm/W			593 nm
Lumileds L1CU-GRN1000000000	Green	120 °	0.92 mm	0.036 in	3-SMD	3-SMD No Lead	350 mA			99 lm	85 °C	Surface Mount	2 mm	2 mm	0.079 in	0.079 in	3.05 V	1.05 A	93 lm/W	520 nm	540 nm	530 nm					4 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.36
		10	$ 1.57
		100	$ 1.21
		500	$ 1.10
	Digi-Reel®	1	$ 2.36
		10	$ 1.57
		100	$ 1.21
		500	$ 1.10
	Tape & Reel (TR)	1000	$ 0.94
		2000	$ 0.89
		5000	$ 0.87
		10000	$ 0.86

Description

General part information

L1CU Series

LED Lighting Color LUXEON CZ Green 530nm (520nm ~ 540nm) 3-SMD, No Lead

Documents

Technical documentation and resources

LUXEON CZ Brief

Datasheet
