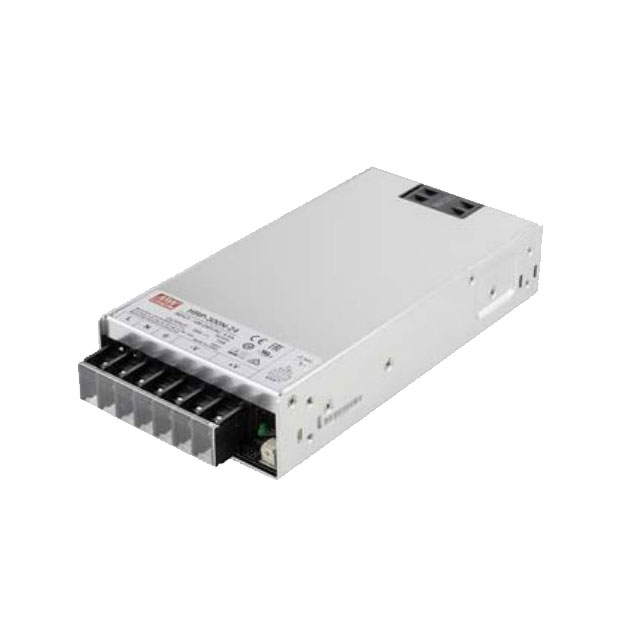

HRP-300N-48

Obsolete

MEAN WELL USA Inc.

AC/DC CONVERTER 48V 336W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HRP-300N-48

Obsolete

MEAN WELL USA Inc.

AC/DC CONVERTER 48V 336W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRP-300N-48

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, EAC, CE, CB
Current - Output 1	7 A
Efficiency	89 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	336 W
Size / Dimension [x]	7.83 in
Size / Dimension [x]	199 mm
Size / Dimension [y]	105 mm
Size / Dimension [y]	4.13 in
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

HRP-300 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Applications	Type	Power (Watts)	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Features	Mounting Type	Current - Output 1	Standard Number
MEAN WELL USA Inc. HRP-300-24	105 mm	7.83 in	4.13 in	41 mm	1.61 "	199 mm	87 %	ITE (Commercial)	Enclosed	336 W	3000 V	1	24 V	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus TUV	Adjustable Output PFC Universal Input	Chassis Mount	14 A
MEAN WELL USA Inc. HRP-300-7.5	105 mm	7.83 in	4.13 in	41 mm	1.61 "	199 mm	86 %	ITE (Commercial)	Enclosed	300 W	3000 V	1	7.5 V	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus TUV	Adjustable Output PFC Universal Input	Chassis Mount	40 A
MEAN WELL USA Inc. HRP-300-36	105 mm	7.83 in	4.13 in	41 mm	1.61 "	199 mm	88 %	ITE (Commercial)	Enclosed	324 W	3000 V	1	36 V	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus TUV	Adjustable Output PFC Universal Input	Chassis Mount	9 A
MEAN WELL USA Inc. HRP-300N-12	105 mm	7.83 in	4.13 in	41 mm	1.61 "	199 mm	88 %	ITE (Commercial)	Enclosed	324 W	3000 V	1	12 V	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	27 A	62368-1
MEAN WELL USA Inc. HRP-300-5	105 mm	7.83 in	4.13 in	41 mm	1.61 "	199 mm		ITE (Commercial)	Enclosed	300 W	3000 V	1	5 V	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus TUV	Adjustable Output PFC Universal Input	Chassis Mount	60 A
MEAN WELL USA Inc. HRP-300-15	105 mm	7.83 in	4.13 in	41 mm	1.61 "	199 mm	88 %	ITE (Commercial)	Enclosed	330 W	3000 V	1	15 V	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus TUV	Adjustable Output PFC Universal Input	Chassis Mount	22 A
MEAN WELL USA Inc. HRP-300N-48	105 mm	7.83 in	4.13 in	41 mm	1.61 "	199 mm	89 %	ITE (Commercial)	Enclosed	336 W	3000 V	1	48 V	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	7 A	62368-1
MEAN WELL USA Inc. HRP-300N-36	105 mm	7.83 in	4.13 in	41 mm	1.61 "	199 mm	88 %	ITE (Commercial)	Enclosed	324 W	3000 V	1	36 V	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	9 A	62368-1
MEAN WELL USA Inc. HRP-300-12	105 mm	7.83 in	4.13 in	41 mm	1.61 "	199 mm	88 %	ITE (Commercial)	Enclosed	324 W	3000 V	1	12 V	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus TUV	Adjustable Output PFC Universal Input	Chassis Mount	27 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HRP-300 Series

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 370 VDC Input
