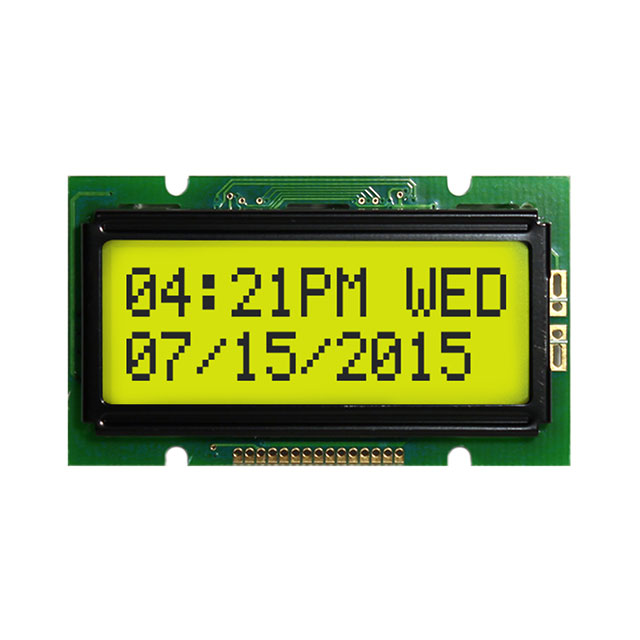

NHD-0212WH-AYGH-JT#

Active

Newhaven Display Intl

LCD MOD 24DIG 12X2 TRANS YLW/GRN

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD 24DIG 12X2 TRANS YLW/GRN

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Area [y]	Viewing Area [x]	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Backlight	Number of Characters	Display Format [y]	Display Format [x]	Dot Size [custom]	Dot Size [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Background Color	Controller Type	Character Format [y]	Character Format [x]	Text Color	Display Mode	Character Size [custom]	Character Size [custom]	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]
Newhaven Display Intl NHD-0212WH-ATMI-JT#	14.5 mm	46 mm	Parallel	-20 C	70 °C	LED - White	24	2	12	0.45 mm	0.6 mm	4.5 V	5.5 V	STN - Super-Twisted Nematic	Blue	ST7066	8 Dots	5 Dots	White	Transmissive	5.5 mm	2.65 mm	14.5 mm	55.7 mm	32 mm
Newhaven Display Intl NHD-0212WH-AYGH-JT#	14.5 mm	46 mm	Parallel	-20 C	70 °C		24	2	12	0.45 mm	0.6 mm	4.5 V	5.5 V	STN - Super-Twisted Nematic	Green	ST7066	8 Dots	5 Dots	Blue	Transflective	5.5 mm	2.65 mm	9.7 mm	55.7 mm	32 mm
Newhaven Display Intl NHD-0212WH-AYYH-JT#	14.5 mm	46 mm	Parallel	-20 C	70 °C		24	2	12	0.45 mm	0.6 mm	4.5 V	5.5 V	STN - Super-Twisted Nematic	Green	ST7066	8 Dots	5 Dots	Blue	Transflective	5.5 mm	2.65 mm	9.7 mm	55.7 mm	32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 55.70mm x 32.00mm x 9.70mm
