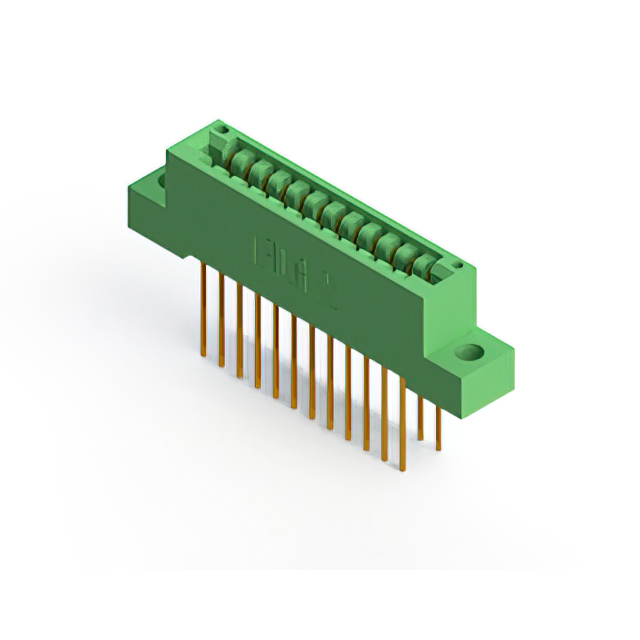

846-024-541-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-024-541-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-024-541-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
846-024 Series
...
| Part | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Card Type | Pitch [x] | Pitch [x] | Number of Rows | Color | Contact Finish | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Contact Material | Termination Rows | Read Out | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Green | Gold | Diallyl Phthalate (DAP) | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | 12 | 10 Áin | 0.25 Ám | 24 | 125 °C | -40 °C | Female | Copper Alloy | 2 | Dual | |||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Single Edge | 0.125 in | 3.18 mm | 1 | Green | Gold | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | Cantilever | 24 | 10 Áin | 0.25 Ám | 24 | 125 °C | -40 °C | Female | Copper Alloy | 1 | Single | 3.25 mm | 0.128 in | |||
EDAC Inc. | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Single Edge | 0.125 in | 3.18 mm | 1 | Green | Gold | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 24 | 10 Áin | 0.25 Ám | 24 | 125 °C | -40 °C | Female | Copper Alloy | 1 | Single | |||||
EDAC Inc. | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Green | Gold | Diallyl Phthalate (DAP) | Cantilever | 12 | 10 Áin | 0.25 Ám | 24 | 125 °C | -40 °C | Female | Copper Alloy | 2 | Dual | 3.25 mm | 0.128 in | Card Extender | |||
EDAC Inc. | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Green | Gold | Diallyl Phthalate (DAP) | Cantilever | 12 | 10 Áin | 0.25 Ám | 24 | 125 °C | -40 °C | Female | Copper Alloy | 2 | Dual | 3.25 mm | 0.128 in | Card Extender | |||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Green | Gold | Diallyl Phthalate (DAP) | Cantilever | 12 | 10 Áin | 0.25 Ám | 24 | 125 °C | -40 °C | Female | Copper Alloy | 2 | Dual | ||||||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Single Edge | 0.125 in | 3.18 mm | 1 | Green | Gold | Diallyl Phthalate (DAP) | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Cantilever | 24 | 10 Áin | 0.25 Ám | 24 | 125 °C | -40 °C | Female | Copper Alloy | 1 | Single | |||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Green | Gold | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | Cantilever | 12 | 10 Áin | 0.25 Ám | 24 | 125 °C | -40 °C | Female | Copper Alloy | 2 | Dual | |||||
EDAC Inc. | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Single Edge | 0.125 in | 3.18 mm | 1 | Green | Gold | Diallyl Phthalate (DAP) | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Cantilever | 24 | 10 Áin | 0.25 Ám | 24 | 125 °C | -40 °C | Female | Copper Alloy | 1 | Single | |||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Non Specified - Dual Edge | 0.125 in | 3.18 mm | 2 | Green | Gold | Diallyl Phthalate (DAP) | Cantilever | 12 | 10 Áin | 0.25 Ám | 24 | 125 °C | -40 °C | Female | Copper Alloy | 2 | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 40.52 | |
Description
General part information
846-024 Series
24 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
