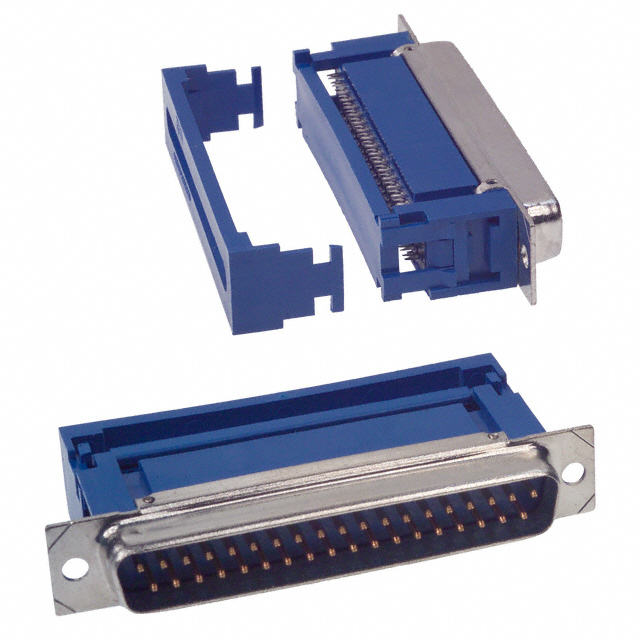

CWR-280-37-0000

Active

CW Industries

CONN D-SUB RCPT 37POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

CWR-280-37-0000

Active

CW Industries

CONN D-SUB RCPT 37POS IDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-280-37-0000

Color	Blue
Connector Style	D-Sub
Connector Type	Receptacle, Male Pins
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Thermoplastic
Features	Feed Through, Strain Relief, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Shell Size, Connector Layout	4 (DC, C)
Termination	IDC, Ribbon Cable
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	27.5 AWG

CWR-280 Series

Part	Connector Type	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Contact Type	Connector Style	Number of Rows	Features	Color	Contact Material	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Material Flammability Rating	Number of Positions	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Shell Size, Connector Layout
CW Industries CWR-280-09-0003	Male Pins Receptacle	IDC Ribbon Cable	DE E	1	Thermoplastic	Signal	D-Sub	2	Feed Through Shielded Strain Relief	Blue	Phosphor Bronze	Housing/Shell (Unthreaded)	2.54 µm	100 µin	Tin	UL94 V-0	9	Free Hanging (In-Line)	30 AWG	27.5 AWG
CW Industries CWR-280-37-0000	Male Pins Receptacle	IDC Ribbon Cable			Thermoplastic	Signal	D-Sub	2	Feed Through Shielded Strain Relief	Blue	Phosphor Bronze	Housing/Shell (Unthreaded)	0.25 Ám	10 Áin	Gold	UL94 V-0	37	Free Hanging (In-Line)	30 AWG	27.5 AWG	4 (DC C)
CW Industries CWR-280-25-0021	Male Pins Receptacle	IDC Ribbon Cable	B DB	3	Thermoplastic	Signal	D-Sub	2	Feed Through Shielded Strain Relief	Blue	Phosphor Bronze	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	Gold	UL94 V-0		Free Hanging (In-Line)	30 AWG	27.5 AWG
CW Industries CWR-280-09-0203	Male Pins Receptacle	IDC Ribbon Cable	DE E	1	Thermoplastic	Signal	D-Sub	2	Feed Through Shielded Strain Relief	Blue	Phosphor Bronze	Housing/Shell (Unthreaded)	2.54 µm	100 µin	Tin	UL94 V-0	9	Free Hanging (In-Line)	30 AWG	27.5 AWG
CW Industries CWR-280-09-0000	Male Pins Receptacle	IDC Ribbon Cable	DE E	1	Thermoplastic	Signal	D-Sub	2	Feed Through Shielded Strain Relief	Blue	Phosphor Bronze	Housing/Shell (Unthreaded)	0.25 Ám	10 Áin	Gold	UL94 V-0	9	Free Hanging (In-Line)	30 AWG	27.5 AWG
CW Industries CWR-280-25-0203	Male Pins Receptacle	IDC Ribbon Cable	B DB	3	Thermoplastic	Signal	D-Sub	2	Feed Through Shielded Strain Relief	Blue	Phosphor Bronze	Housing/Shell (Unthreaded)	2.54 µm	100 µin	Tin	UL94 V-0		Free Hanging (In-Line)	30 AWG	27.5 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.22
		10	$ 10.83
		25	$ 10.42
		50	$ 10.00
		100	$ 9.44
		300	$ 8.61
		500	$ 8.05
		1000	$ 7.39

Description

General part information

CWR-280 Series

37 Position D-Sub Receptacle, Male Pins Connector

Documents

Technical documentation and resources

No documents available
