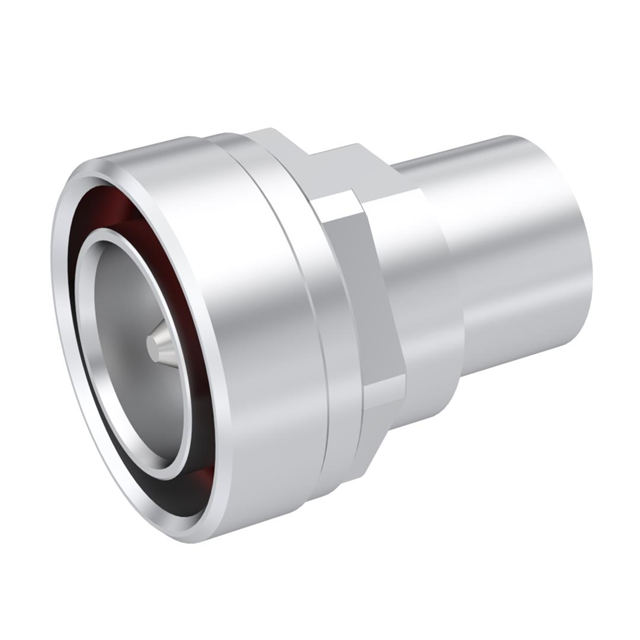

R404170111

Active

Radiall USA, Inc.

TERMINATION: 7-16 M 4 GHZ 2W 50O

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERMINATION: 7-16 M 4 GHZ 2W 50O

Technical Specifications

Parameters and characteristics for this part

Specification	R404170111

Body Finish	Silver
Body Material	Brass
Connector Style	7/16 DIN
Connector Type	Male Pin, Plug
Contact Finish	White Bronze
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Contact Material	Body Finish	Frequency - Max [Max]	Mounting Type	Connector Style	Impedance	Dielectric Material	Body Material	Connector Type	Contact Finish
Radiall USA, Inc. R404170111	Brass	Silver	4 GHz	Cap Free Hanging	7/16 DIN	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Male Pin Plug	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 160.52

General part information

Terminator Coax Connector Plug, Male Pin 7/16 DIN 50 Ohms

Technical documentation and resources

No documents available
