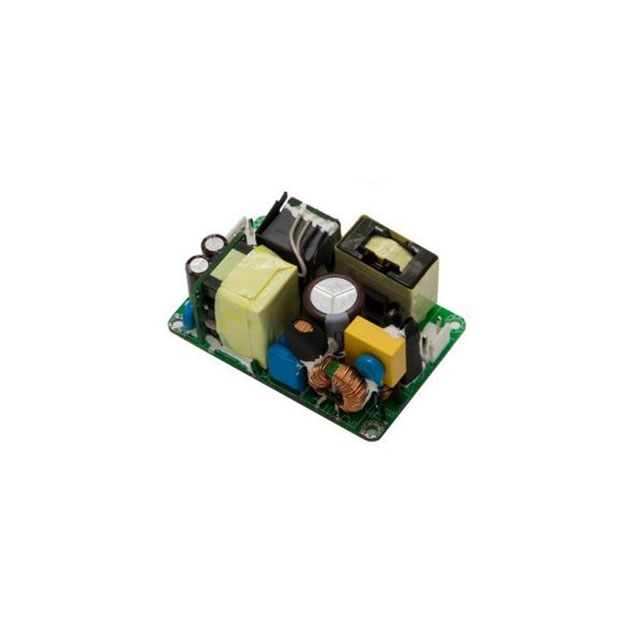

PPWAM150-14A
ActiveTT Electronics/Power Partners Inc.
AC/DC CONVERTER 24V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PPWAM150-14A
ActiveTT Electronics/Power Partners Inc.
AC/DC CONVERTER 24V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PPWAM150-14A |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, FCC, CE, TUV, CB |
| Current - Output 1 | 6.25 A |
| Efficiency | 92 % |
| Features | PFC, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 150 W |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 3 " |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.18 in |
| Size / Dimension [z] | 30 mm |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 5.656 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 65.11 | |
| 5 | $ 64.09 | |||
| 10 | $ 61.04 | |||
| 25 | $ 56.97 | |||
| 50 | $ 55.95 | |||
| 100 | $ 54.12 | |||
Description
General part information
PWAM150 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
