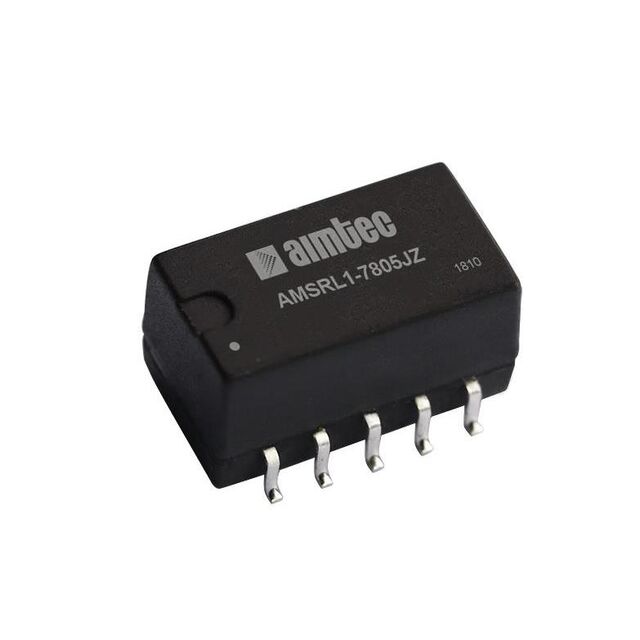

AMSRL1-7805JZ

Obsolete

aimtec

DC DC CONVERTER 5V 5W

Search across all available documentation for this part.

Obsolete

aimtec

DC DC CONVERTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	AMSRL1-7805JZ

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1 A
Efficiency	85 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module, 7 Leads
Power (Watts)	5 W
Size / Dimension [x]	0.6 in
Size / Dimension [x]	15.2 mm
Size / Dimension [y]	0.34 in
Size / Dimension [y]	8.5 mm
Size / Dimension [z]	8.3 mm
Size / Dimension [z]	0.33 in
Supplier Device Package	SMD
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	8 V
Voltage - Output 1	5 V

Part	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Features	Efficiency	Type	Voltage - Output 1	Applications	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Mounting Type	Supplier Device Package	Package / Case
aimtec AMSRL1-783.3JZ	6.5 V	1 A	36 V	0.45 in	15.2 mm	0.6 in	0.32 "	8.5 mm	11.4 mm	Adjustable Output Remote On/Off	80 %	Non-Isolated PoL Module	3.3 V	ITE (Commercial)	3.3 W	85 °C	-40 °C	1	Surface Mount
aimtec AMSRL1-7812JZ	16 V	1 A	36 V	0.45 in	15.2 mm	0.6 in	0.32 "	8.5 mm	11.4 mm	Adjustable Output Remote On/Off	92 %	Non-Isolated PoL Module	12 V	ITE (Commercial)	12 W	85 °C	-40 °C	1	Surface Mount
aimtec AMSRL1-7805JZ	8 V	1 A	36 V	0.34 in	15.2 mm	0.6 in	0.33 in	8.3 mm	8.5 mm	Adjustable Output Remote On/Off	85 %	Non-Isolated PoL Module	5 V	ITE (Commercial)	5 W	85 °C	-40 °C	1	Surface Mount	SMD	10-SMD Module 7 Leads
aimtec AMSRL1-781.8JZ	4.75 V	1 A	32 V	0.45 in	15.2 mm	0.6 in	0.32 "	8.5 mm	11.4 mm	Adjustable Output Remote On/Off	69 %	Non-Isolated PoL Module	1.8 V	ITE (Commercial)	1.8 W	85 °C	-40 °C	1	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 5V 1A 8V - 36V Input
