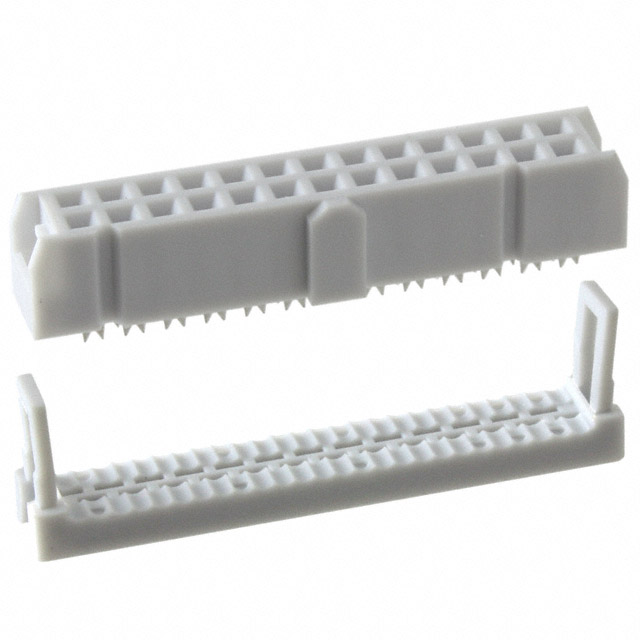

AWP 26-7540-T

Active

Assmann WSW Components

CONN SOCKET 26POS IDC TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN SOCKET 26POS IDC TIN

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Row Spacing [x]	Row Spacing	Wire Type	Cable Termination	Color	Connector Type	Features	Contact Type	Number of Rows	Contact Finish	Contact Finish Thickness
Assmann WSW Components AWP26-8241-T-R	Free Hanging (In-Line)	2.54 mm	0.1 in	26	0.1 in	2.54 mm	Ribbon Cable	IDC	Gray	Socket	Feed Through Strain Relief	Female Socket	2	Gold
Assmann WSW Components AWP 26-7540-T	Free Hanging (In-Line)	2.54 mm	0.1 in	26	0.1 in	2.54 mm	Ribbon Cable	IDC	Gray	Socket	Feed Through Polarizing Key	Female Socket	2	Tin
Assmann WSW Components AWP26-7240-T-R	Free Hanging (In-Line)	2.54 mm	0.1 in	26	0.1 in	2.54 mm	Ribbon Cable	IDC	Gray	Socket	Feed Through Polarizing Key	Female Socket	2	Gold	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Rectangular Socket Connector IDC Tin
