SC4212MLTRT

Active

Semtech Corporation

LDO REGULATOR POS 0.5V TO 5V 1A 8-PIN MLPD EP T/R

Search across all available documentation for this part.

Active

Semtech Corporation

LDO REGULATOR POS 0.5V TO 5V 1A 8-PIN MLPD EP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	SC4212MLTRT

Control Features	Enable
Current - Output	1 A
Current - Quiescent (Iq)	15 µA
Current - Supply (Max) [Max]	3 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable (Fixed)

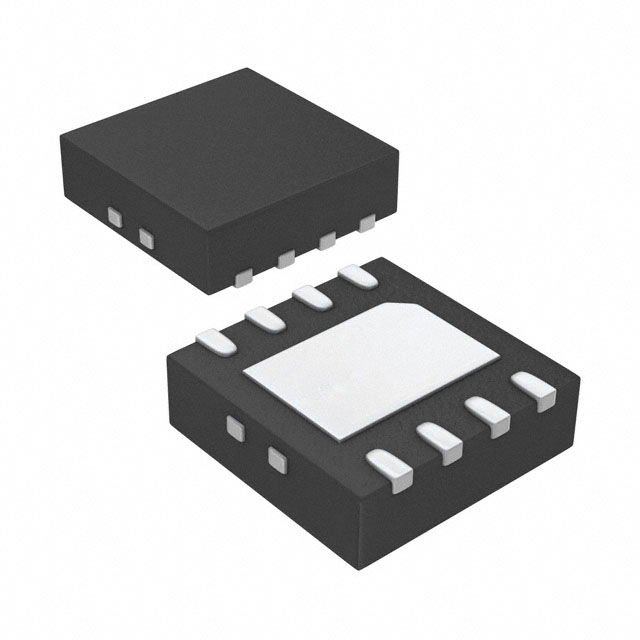

Package / Case	8-VDFN Exposed Pad
Protection Features	Over Temperature, Reverse Polarity, Over Current
Supplier Device Package	8-MLPD (3x3)
Voltage - Input (Max) [Max]	6 V
Voltage - Output (Max)	5 V
Voltage - Output (Min/Fixed)	0.5 V
Voltage Dropout (Max) [Max]	0.5 V

Part	Output Type	Supplier Device Package	Number of Regulators	Protection Features	Control Features	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Mounting Type	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Voltage - Output (Max)	Current - Supply (Max) [Max]	Output Configuration	Voltage Dropout (Max) [Max]
Semtech Corporation SC4212MLTRT	Adjustable (Fixed)	8-MLPD (3x3)	1	Over Current Over Temperature Reverse Polarity	Enable	6 V	8-VDFN Exposed Pad	125 °C	-40 °C	1 A	Surface Mount	0.5 V	15 µA	5 V	3 mA	Positive	0.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 1A 8-MLPD (3x3)

Technical documentation and resources

No documents available
