4D15-N2

Active

ULTRAVOLT / Advanced Energy

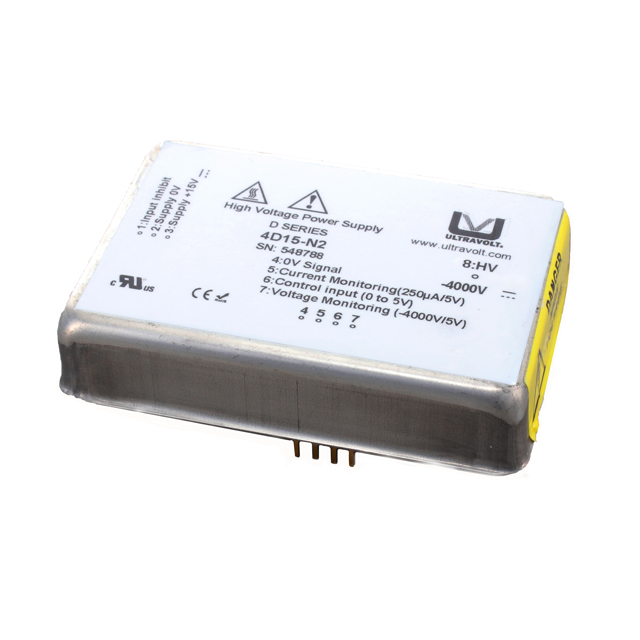

NON-ISOLATED DC/DC CONVERTERS D-SERIES DC TO HVDC CONVERTER, SINGLE OUTPUT (UNIPOLAR), +15V INPUT, -4000V HVOUT, 2W, THRU-HOLE MOUNT, REGULATED

Search across all available documentation for this part.

Active

ULTRAVOLT / Advanced Energy

NON-ISOLATED DC/DC CONVERTERS D-SERIES DC TO HVDC CONVERTER, SINGLE OUTPUT (UNIPOLAR), +15V INPUT, -4000V HVOUT, 2W, THRU-HOLE MOUNT, REGULATED

Technical Specifications

Parameters and characteristics for this part

Specification	4D15-N2

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 µA
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-10 °C
Package / Case	8-DIP Module
Power (Watts)	2 W
Size / Dimension [x]	63.5 mm
Size / Dimension [x]	63.5 mm
Size / Dimension [y]	44 mm
Size / Dimension [y]	1.73 "
Size / Dimension [z]	17.5 mm
Size / Dimension [z]	0.69 "
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	16.5 V
Voltage - Input (Min) [Min]	13.5 V
Voltage - Output 1 [Max]	4000 V
Voltage - Output 1 [Min]	0 V

Circuit Breakers DC1B0246201G1C

Part	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Type	Applications
ULTRAVOLT / Advanced Energy 6D15-P2	1	44 mm	17.5 mm	63.5 mm	63.5 mm	0.69 "	1.73 "	Adjustable Output Remote On/Off	6000 V	0 V	Through Hole	13.5 V	8-DIP Module	330 µA	-10 °C	65 °C	16.5 V	2 W	High Voltage - Non-Isolated Module	ITE (Commercial)
ULTRAVOLT / Advanced Energy 4D15-N2	1	44 mm	17.5 mm	63.5 mm	63.5 mm	0.69 "	1.73 "	Adjustable Output Remote On/Off	4000 V	0 V	Through Hole	13.5 V	8-DIP Module	500 µA	-10 °C	65 °C	16.5 V	2 W	High Voltage - Non-Isolated Module	ITE (Commercial)
