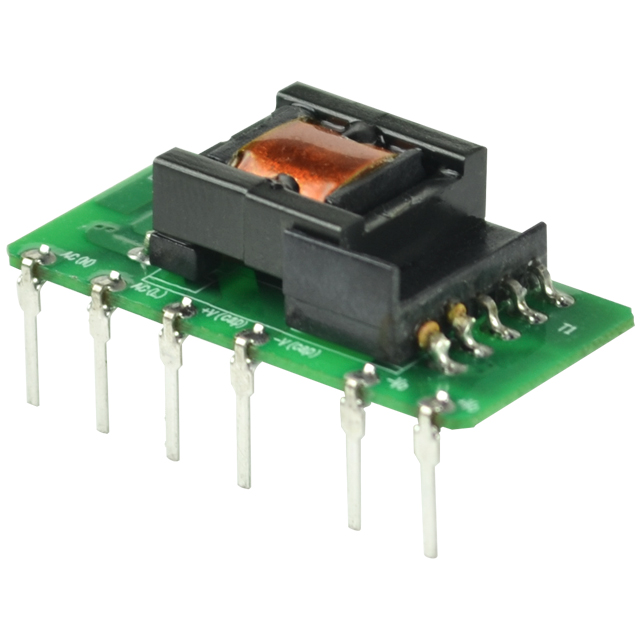

PBO-3-S3.3-B

Obsolete

CUI Inc.

AC/DC CONVERTER 3.3V 2W

Deep-Dive with AI

Search across all available documentation for this part.

PBO-3-S3.3-B

Obsolete

CUI Inc.

AC/DC CONVERTER 3.3V 2W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBO-3-S3.3-B

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output (Max) [Max]	600 mA
Efficiency	63 %
Line Regulation	1.5 %
Load Regulation	2.5 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6 Leads
Package / Case	12-SIP Module
Power (Watts)	2 W
Size / Dimension [x]	1.38 "
Size / Dimension [x]	35 mm
Size / Dimension [y]	18 mm
Size / Dimension [y]	0.71 in
Size / Dimension [z]	0.43 "
Size / Dimension [z]	11 mm
Standard Number	55032, 61000.32, 55024, 60950.1, 61000.33
Type	Open Frame
Voltage - Input [Max]	430 VDC, 305 VAC
Voltage - Input [Min]	70 VDC, 85 VAC
Voltage - Output 1	3.3 V
Weight	5.9 g
Weight	0.013 lb

PBO-3 Series

Part	Mounting Type	Efficiency	Standard Number	Number of Outputs	Approval Agency	Line Regulation	Type	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Load Regulation	Power (Watts)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Current - Output (Max) [Max]	Package / Case	Weight	Weight	Size / Dimension [y]	Size / Dimension [z]	Standard Number
CUI Inc. PBO-3C-5	Through Hole	72 %	60335-1 62368-1	1	CE cURus	1.5 %	Open Frame	5 V	0.49 in	26.4 mm	0.43 in	1.04 in	12.6 mm	11 mm	3 %	3 W	Household Appliances ITE (Commercial)	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	6-SIP Module	600 mA
CUI Inc. PBO-3C-3	Through Hole	67 %	60335-1 62368-1	1	CE cURus	1.5 %	Open Frame	3.3 V	0.49 in	26.4 mm	0.43 in	1.04 in	12.6 mm	11 mm	3 %	1.98 W	Household Appliances ITE (Commercial)	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	6-SIP Module	600 mA
CUI Inc. PBO-3C-24	Through Hole	80 %	60335-1 62368-1	1	CE cURus	1.5 %	Open Frame	24 V	0.49 in	26.4 mm	0.43 in	1.04 in	12.6 mm	11 mm	3 %	3 W	Household Appliances ITE (Commercial)	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	6-SIP Module	125 mA
CUI Inc. PBO-3C-9	Through Hole	76 %	60335-1 62368-1	1	CE cURus	1.5 %	Open Frame	9 V	0.49 in	26.4 mm	0.43 in	1.04 in	12.6 mm	11 mm	3 %	3 W	Household Appliances ITE (Commercial)	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	6-SIP Module	333 mA
CUI Inc. PBO-3-S3.3	Through Hole	63 %		1	CB Scheme EN IEC UL	1.5 %	Open Frame	3.3 V	0.71 in	35 mm	0.43 in	1.38 "			2.5 %	2 W	ITE (Commercial)	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	12-SIP Module	600 mA	6 Leads	5.9 g	0.013 lb	11 mm	18 mm	55024 55032 60950.1 61000.32 61000.33
CUI Inc. PBO-3C-15	Through Hole	78 %	60335-1 62368-1	1	CE cURus	1.5 %	Open Frame	15 V	0.49 in	26.4 mm	0.43 in	1.04 in	12.6 mm	11 mm	3 %	3 W	Household Appliances ITE (Commercial)	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	6-SIP Module	200 mA
CUI Inc. PBO-3C-12	Through Hole	77 %	60335-1 62368-1	1	CE cURus	1.5 %	Open Frame	12 V	0.49 in	26.4 mm	0.43 in	1.04 in	12.6 mm	11 mm	3 %	3 W	Household Appliances ITE (Commercial)	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	6-SIP Module	250 mA
CUI Inc. PBO-3-S3.3-B	Through Hole	63 %		1	CB Scheme EN IEC UL	1.5 %	Open Frame	3.3 V	0.43 "	35 mm	0.71 in	1.38 "	11 mm	18 mm	2.5 %	2 W	ITE (Commercial)	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	12-SIP Module	600 mA	6 Leads	5.9 g	0.013 lb			55024 55032 60950.1 61000.32 61000.33

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PBO-3 Series

Open Frame AC DC Converters 1 Output 3.3V 600mA 85 ~ 305 VAC, 70 ~ 430 VDC Input
