EVB111-5.0A

Active

Allegro MicroSystems

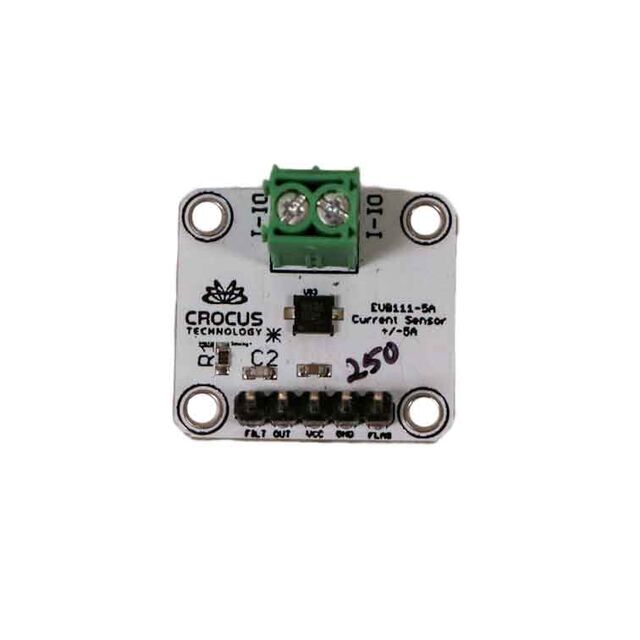

EVAL BOARD FOR CT110

Search across all available documentation for this part.

Active

Allegro MicroSystems

EVAL BOARD FOR CT110

Technical Specifications

Parameters and characteristics for this part

Part	Number of Channels	Voltage - Supply [Min]	Voltage - Supply [Max]	Polarization	Current - Sensing	Supplier Device Package	Output	Response Time	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	For Measuring	Linearity	Sensor Type	Frequency	Sensitivity	Accuracy	Sensing Range [Min]	Sensing Range [Max]	Supplied Contents	Interface
Allegro MicroSystems CT110PDV-ID6	1	2.7 V	5.5 V	Bidirectional	10 A	6-DFN (3x3)	Current Ratiometric Voltage	20 µs	2.5 mA	85 °C	-40 °C	Surface Mount	6-TDFN Exposed Pad	AC/DC	0.15 %	Magnetoresistive	DC ~ 200kHz	200 mV/A	0.5 %
Allegro MicroSystems CT110RDV-ID6	1	2.7 V	5.5 V	Bidirectional	15 A	6-DFN (3x3)	Current Ratiometric Voltage	20 µs	2.5 mA	85 °C	-40 °C	Surface Mount	6-TDFN Exposed Pad	AC/DC	0.15 %	Magnetoresistive	DC ~ 200kHz	40 mV/mT	0.5 %
Allegro MicroSystems CT110FDC-ID6	1	2.7 V	5.5 V	Bidirectional	5 A	6-DFN (3x3)	Current Ratiometric Voltage	20 µs	2.5 mA	85 °C	-40 °C	Surface Mount	6-TDFN Exposed Pad	AC/DC	0.15 %	Magnetoresistive	DC ~ 200kHz	200 mV/A	0.5 %
Allegro MicroSystems CT110RDC-ID6	1	2.7 V	5.5 V	Bidirectional	15 A	6-DFN (3x3)	Current Ratiometric Voltage	20 µs	2.5 mA	85 °C	-40 °C	Surface Mount	6-TDFN Exposed Pad	AC/DC	0.15 %	Magnetoresistive	DC ~ 200kHz	80 mV/A	0.5 %
Allegro MicroSystems EVB111-5.0A		2.7 V	5.5 V													Current Sensor		412.5 mV/A		-5 A	5 A	Board(s)	Analog

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.22

General part information

CT110 XtremeSense™ Crocus Technology Current Sensor Sensor Evaluation Board
