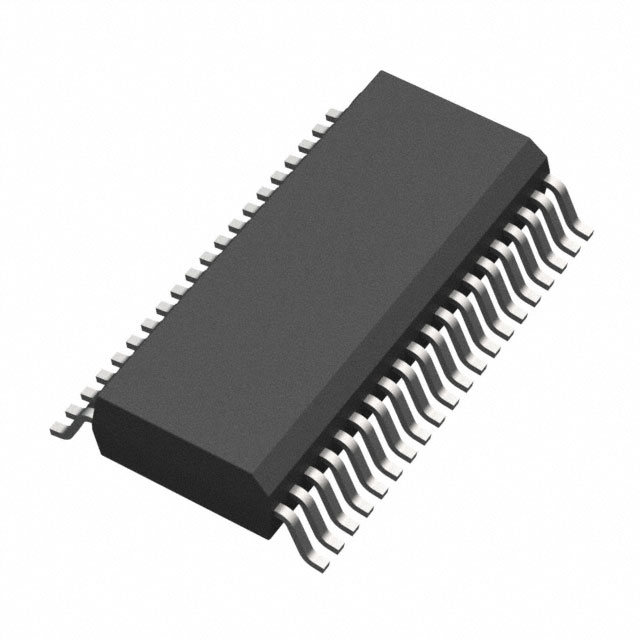

QS74FCT2X3245AQ2

Obsolete

Quality Semiconductor

IC TRANSCEIVER 3.3V 1CHAN

Search across all available documentation for this part.

Obsolete

Quality Semiconductor

IC TRANSCEIVER 3.3V 1CHAN

Technical Specifications

Parameters and characteristics for this part

Specification	QS74FCT2X3245AQ2

Current - Output High, Low [custom]	24 mA
Current - Output High, Low [custom]	-
Logic Type	Transceiver
Mounting Type	Surface Mount
Number of Bits per Element	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State
Voltage - Supply	3.3 V

Part	Logic Type	Mounting Type	Output Type	Voltage - Supply	Number of Bits per Element	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Operating Temperature [Max]	Operating Temperature [Min]
Quality Semiconductor QS74FCT2X3245AQ2	Transceiver	Surface Mount	3-State	3.3 V	16	24 mA	-	85 °C	-40 °C
Quality Semiconductor QS74FCT2X3245Q2	Transceiver	Surface Mount	3-State	3.3 V	16	24 mA	-	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	307	$ 0.98

General part information

Transceiver Element 16 Bit per Element 3-State Output

Technical documentation and resources

No documents available
