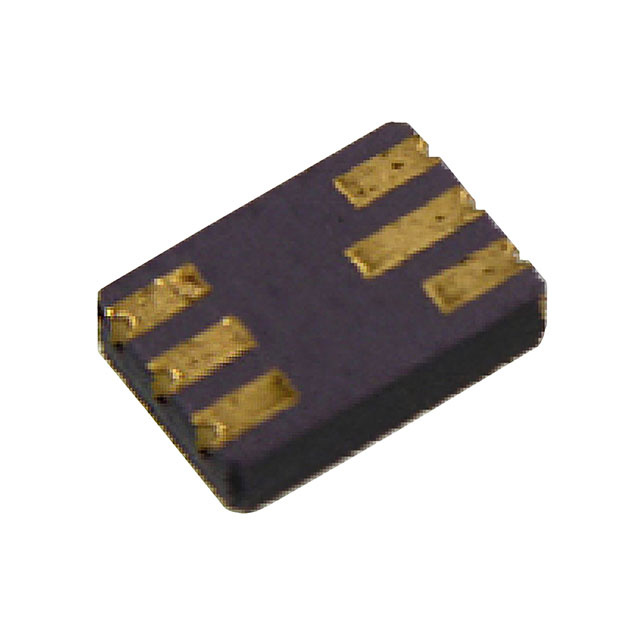

HCT802

Obsolete

TT Electronics/Optek Technology

MOSFET N/P-CH 90V 2A/1.1A 6SMD

Search across all available documentation for this part.

Obsolete

TT Electronics/Optek Technology

MOSFET N/P-CH 90V 2A/1.1A 6SMD

Technical Specifications

Parameters and characteristics for this part

Specification	HCT802

Configuration	N and P-Channel
Current - Continuous Drain (Id) @ 25°C	2 A, 1.1 A
Drain to Source Voltage (Vdss)	90 V
Input Capacitance (Ciss) (Max) @ Vds [Max]	70 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-SMD, No Lead
Power - Max [Max]	500 mW
Rds On (Max) @ Id, Vgs	5 Ohm
Supplier Device Package	6-SMD
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id [Max]	2.5 V

Part	Mounting Type	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id [Max]	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power - Max [Max]	Technology	Rds On (Max) @ Id, Vgs
TT Electronics/Optek Technology HCT802	Surface Mount	N and P-Channel	-55 °C	150 °C	6-SMD No Lead	6-SMD	90 V	2.5 V	1.1 A 2 A	70 pF	500 mW	MOSFET (Metal Oxide)	5 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mosfet Array 90V 2A, 1.1A 500mW Surface Mount 6-SMD

Technical documentation and resources

No documents available
