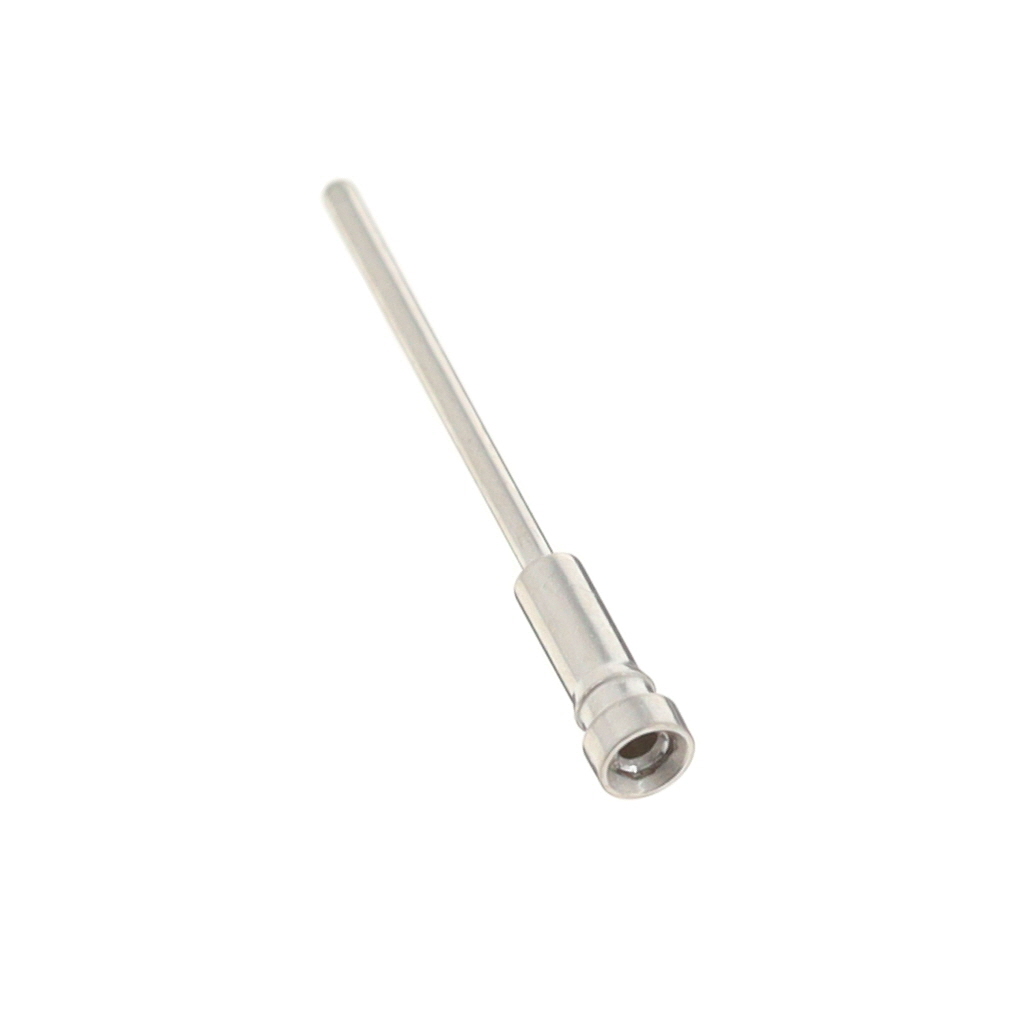

0152-0-15-80-30-84-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
0152-0-15-80-30-84-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0152-0-15-80-30-84-04-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.025 " |
| Accepts Pin Diameter [Max] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.015 " |
| Accepts Pin Diameter [Min] | 0.38 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Length - Overall [x] | 0.6 in |
| Length - Overall [x] | 15.24 mm |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 3.81 mm |
| Socket Depth | 0.15 in |
| Tail Diameter [diameter] | 0.025 in |
| Tail Diameter [diameter] | 0.64 mm |
| Tail Type | Standard Tail |
| Termination | Press-Fit |
0152-0 Series
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Length - Overall [x] | Length - Overall [x] | Socket Depth | Socket Depth | Tail Diameter [diameter] | Tail Diameter [diameter] | Contact Finish | Tail Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 1.83 mm | 0.072 in | 10 Áin | 0.25 Ám | -55 °C | 125 °C | 0.025 " | 0.64 mm | 0.015 " | 0.38 mm | 0.6 in | 15.24 mm | 3.81 mm | 0.15 in | 0.025 in | 0.64 mm | Gold | Standard Tail | 0.057 " | 1.45 mm | Press-Fit | Beryllium Copper |
Mill-Max Manufacturing Corp. | 1.83 mm | 0.072 in | 10 Áin | 0.25 Ám | -55 °C | 125 °C | 0.025 " | 0.64 mm | 0.015 " | 0.38 mm | 0.6 in | 15.24 mm | 3.81 mm | 0.15 in | 0.025 in | 0.64 mm | Gold | Standard Tail | 0.057 " | 1.45 mm | Press-Fit | Beryllium Copper |
Mill-Max Manufacturing Corp. | 1.83 mm | 0.072 in | 100 µin | 2.54 µm | -55 °C | 125 °C | 0.025 " | 0.64 mm | 0.015 " | 0.38 mm | 0.6 in | 15.24 mm | 3.81 mm | 0.15 in | 0.025 in | 0.64 mm | Tin | Standard Tail | 0.057 " | 1.45 mm | Press-Fit | Beryllium Copper |
Mill-Max Manufacturing Corp. | 1.83 mm | 0.072 in | 30 Áin | 0.76 Ám | -55 °C | 125 °C | 0.025 " | 0.64 mm | 0.015 " | 0.38 mm | 0.6 in | 15.24 mm | 3.81 mm | 0.15 in | 0.025 in | 0.64 mm | Gold | Standard Tail | 0.057 " | 1.45 mm | Press-Fit | Beryllium Copper |
Mill-Max Manufacturing Corp. | 1.83 mm | 0.072 in | 100 µin | 2.54 µm | -55 °C | 125 °C | 0.025 " | 0.64 mm | 0.015 " | 0.38 mm | 0.6 in | 15.24 mm | 3.81 mm | 0.15 in | 0.025 in | 0.64 mm | Tin-Lead | Standard Tail | 0.057 " | 1.45 mm | Press-Fit | Beryllium Copper |
Mill-Max Manufacturing Corp. | 1.83 mm | 0.072 in | 30 Áin | 0.76 Ám | -55 °C | 125 °C | 0.025 " | 0.64 mm | 0.015 " | 0.38 mm | 0.6 in | 15.24 mm | 3.81 mm | 0.15 in | 0.025 in | 0.64 mm | Gold | Standard Tail | 0.057 " | 1.45 mm | Press-Fit | Beryllium Copper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.17 | |
| 10 | $ 0.99 | |||
| 100 | $ 0.89 | |||
| 1000 | $ 0.65 | |||
| 5000 | $ 0.57 | |||
| 10000 | $ 0.54 | |||
Description
General part information
0152-0 Series
Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
