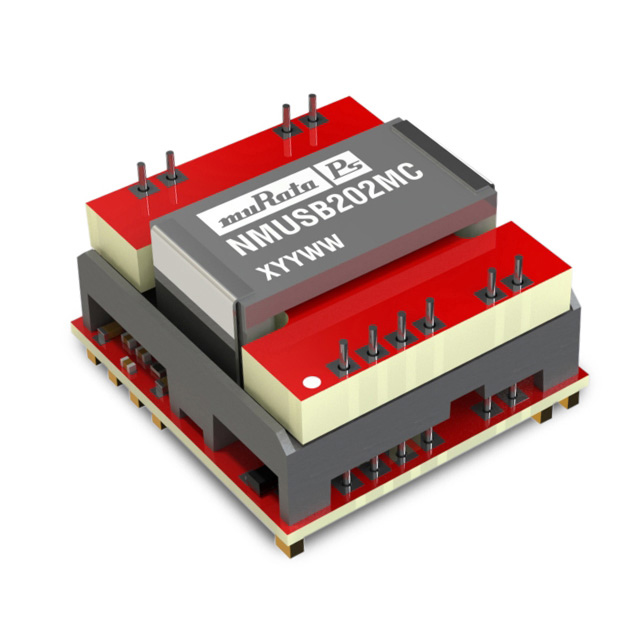

NMUSB202MC-R7
ObsoleteMurata Power Solutions Inc.
DGTL ISOL 3000VAC 2CH USB MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMUSB202MC-R7
ObsoleteMurata Power Solutions Inc.
DGTL ISOL 3000VAC 2CH USB MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NMUSB202MC-R7 |
|---|---|
| Channel Type | Bidirectional |
| Data Rate | 12 Mbps |
| Inputs - Side 1/Side 2 | 1/1 |
| Isolated Power | True |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 13-SMD Module |
| Supplier Device Package | Module |
| Technology | Magnetic Coupling |
| Type | USB |
| Voltage - Isolation | 3000 VAC |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NMUSB Series
USB Digital Isolator 3000VAC 2 Channel 12Mbps CMTI 13-SMD Module
Documents
Technical documentation and resources
