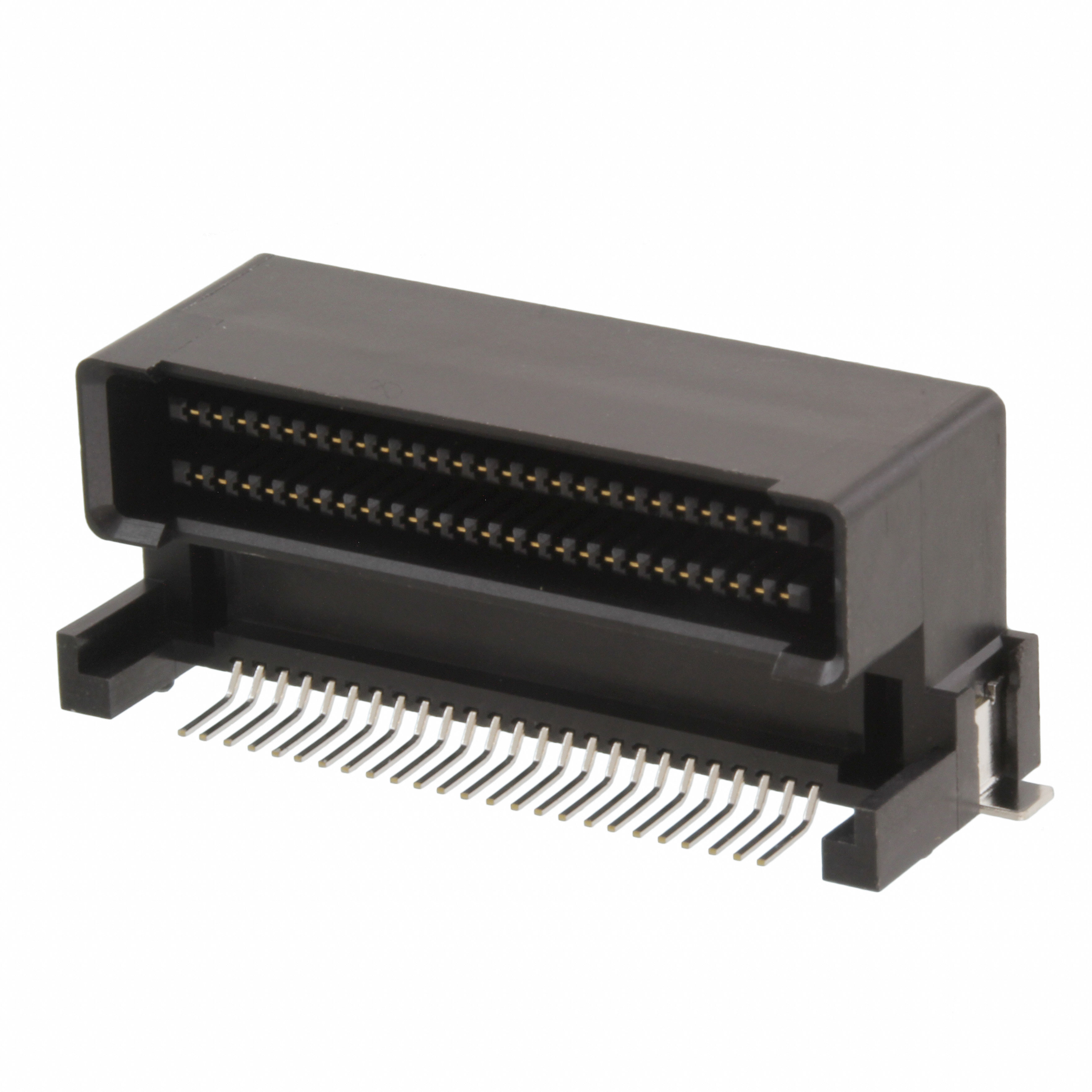

GT23F-50DP-0.8H

Active

Hirose Electric USA, Inc.

CONN HDR 50POS R/A SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HDR 50POS R/A SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	GT23F-50DP-0.8H

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.445 in
Height Above Board	11.3 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	50
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Features	Connector Type	Contact Finish	Mounting Type
Hirose Electric USA, Inc. GT23F-50DS-0.8V	2	50	6.7 mm	0.264 "	0.8 mm	0.031 in	Board Guide Solder Retention	Center Strip Contacts Receptacle	Gold	Surface Mount
Hirose Electric USA, Inc. GT23F-50DP-0.8H	2	50	11.3 mm	0.445 in	0.8 mm	0.031 in	Board Guide Solder Retention	Header Outer Shroud Contacts	Gold	Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Connector Header, Outer Shroud Contacts Surface Mount, Right Angle Gold
