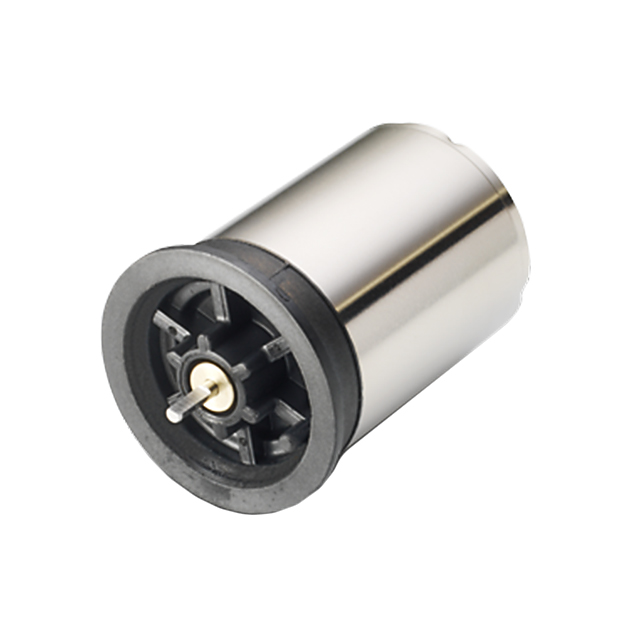

22S28-210P.1
ActivePortescap
STANDARD MOTOR 10000 RPM 12V
Deep-Dive with AI
Search across all available documentation for this part.
22S28-210P.1
ActivePortescap
STANDARD MOTOR 10000 RPM 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 22S28-210P.1 |
|---|---|
| Diameter - Shaft [diameter] | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm |
| Function | Standard |
| Length - Shaft and Bearing | 7.5 mm |
| Length - Shaft and Bearing [x] | 0.295 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 12 mm |
| Mounting Hole Spacing | 0.472 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 2.8 W |
| RPM | 10000 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 22 mm |
| Size / Dimension [diameter] | 0.866 in |
| Termination Style | Solder Tab |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
| Weight | 0.108 lb |
| Weight | 48.99 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 55.39 | |
| 5 | $ 54.43 | |||
Description
General part information
22S28 Series
Brushed DC Motor Standard 10000 RPM 2.8W 12VDC
Documents
Technical documentation and resources
No documents available
