19410282601

Active

HARTING Technology Group

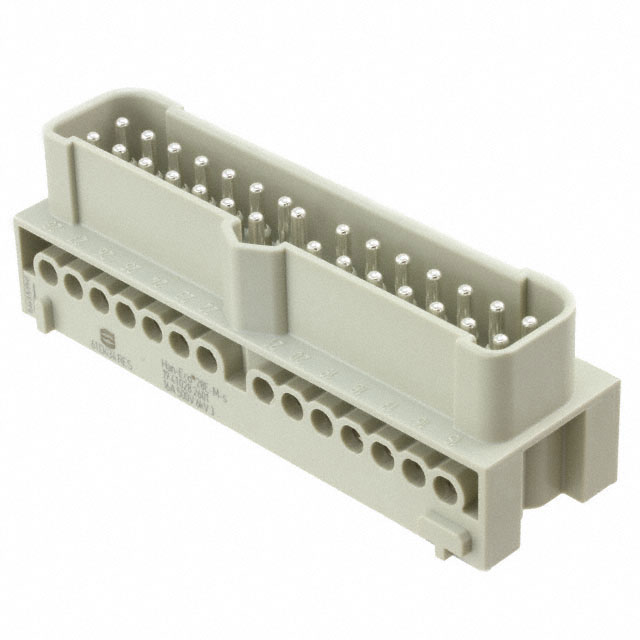

HAN-ECO MODULAR 28E+GND MALE SCREW TERMINAL MODULE - FOR HAN-ECO MODULAR 24B HOOD/HOUSING

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 28E+GND MALE SCREW TERMINAL MODULE - FOR HAN-ECO MODULAR 24B HOOD/HOUSING

Technical Specifications

Parameters and characteristics for this part

Specification	19410282601

Color	Gray
Connector Type	Module
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	28
Number of Positions [custom]	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Termination Style	Screw
Voltage Rating	500 V

Part	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Connector Type	Voltage Rating	Color	Material Flammability Rating	Gender	Termination Style	Size	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 19410282601	28	Ground	16 A	Module	500 V	Gray	UL94 V-0	Male	Screw	24 B	Polycarbonate (PC)	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module Gray 28+Ground Position Screw
