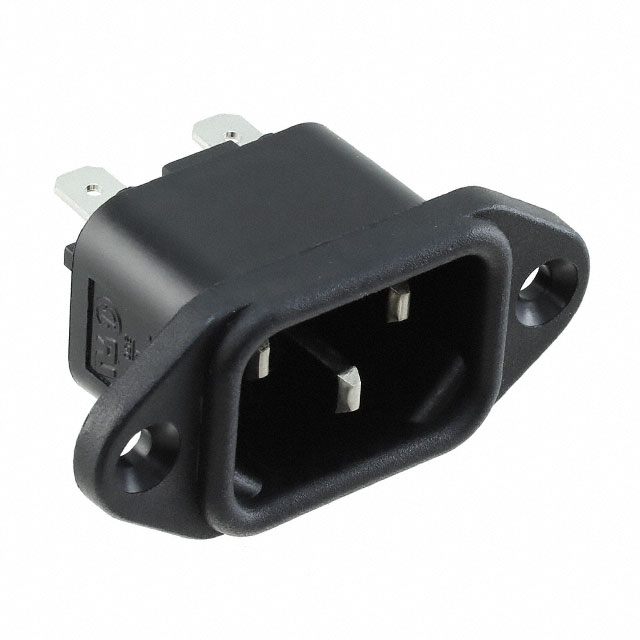

PX0580/48

Active

BULGIN LIMITED

IEC POWER CONNECTOR, IEC C14 INLET, 10 A, 250 VAC, QUICK CONNECT, SNAP-IN, FLANGE MOUNT

Search across all available documentation for this part.

Active

BULGIN LIMITED

IEC POWER CONNECTOR, IEC C14 INLET, 10 A, 250 VAC, QUICK CONNECT, SNAP-IN, FLANGE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	PX0580/48

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Features	Front or Rear Side Mount
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions	Filter Type	Current Rating - Appliance Inlet	Connector Style	Connector Type	Approval Agency	Termination	Features	Mounting Type	Material Flammability Rating	Termination	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [custom]	Panel Thickness [custom]
BULGIN LIMITED PX0580/TERM	250 VAC	Variable Size	Unfiltered - Commercial	10 A	IEC 320-C14	Male Blades Receptacle	CSA ENEC UL VDE	Screw	Front or Rear Side Mount	Flange Panel Mount	UL94 V-0
BULGIN LIMITED PX0580/48	250 VAC	Variable Size	Unfiltered - Commercial	10 A	IEC 320-C14	Male Blades Receptacle	CSA ENEC UL VDE	Quick Connect	Front or Rear Side Mount	Flange Panel Mount	UL94 V-0	0.189 " 4.8 mm
BULGIN LIMITED PX0580/63	250 VAC	Variable Size	Unfiltered - Commercial	10 A	IEC 320-C14	Male Blades Receptacle	CSA ENEC UL VDE	Quick Connect	Front or Rear Side Mount	Flange Panel Mount	UL94 V-0	6.3 mm	0.25 in
BULGIN LIMITED PX0580/PC/7/LC	250 VAC		Unfiltered - Commercial	10 A	IEC 320-C14	Male Blades Receptacle	CSA ENEC UL VDE	Solder		Panel Mount Flange Through Hole Right Angle	UL94 V-0			30.25 mm	22.48 mm	0.126 in	3.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
