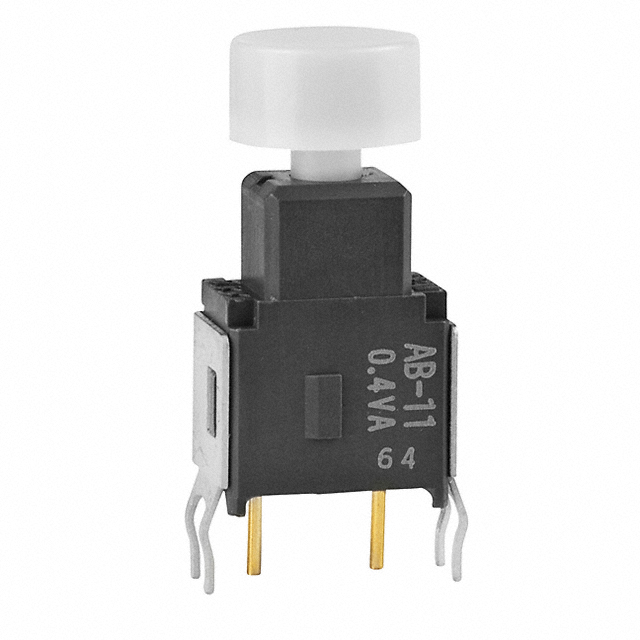

AB11BB-HB

Active

NKK Switches

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Voltage Rating - DC	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Circuit	Mounting Type	Color - Actuator/Cap	Type	Voltage Rating - AC	Electrical Life	Switch Function	Features	Actuator Marking
NKK Switches AB11BB-FA	PC Pin	28 V	Button Round	-30 ░C	85 °C	0.4 VA	SPST-NO	Through Hole	Black	Standard	28 V	50000 Cycles	Off-Mom	Sealed - Fully	No Marking
NKK Switches AB11BB-HB	PC Pin	28 V	Button Round	-30 ░C	85 °C	0.4 VA	SPST-NO	Through Hole	White	Standard	28 V	50000 Cycles	Off-Mom	Sealed - Fully	No Marking
NKK Switches AB11BB-HA	PC Pin	28 V	Button Round	-30 ░C	85 °C	0.4 VA	SPST-NO	Through Hole	Black	Standard	28 V	50000 Cycles	Off-Mom	Sealed - Fully	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole
