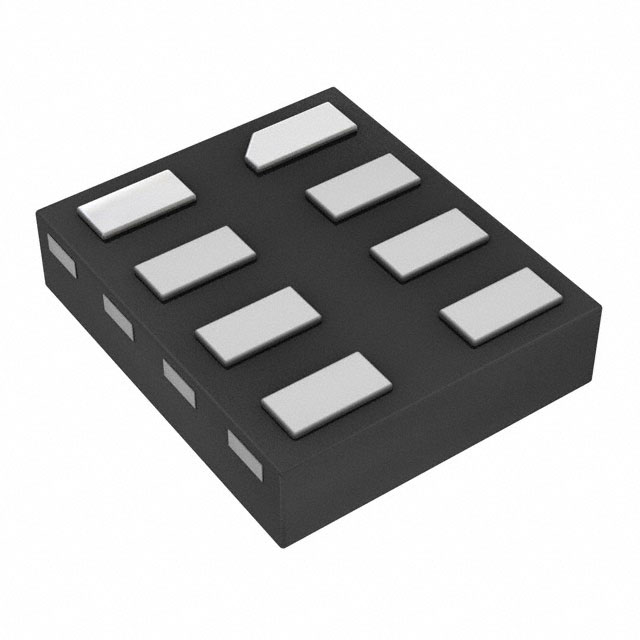

74AUP2G02RA3-7
ActiveIC GATE NOR 2CH 2-INP DFN1210-8
Deep-Dive with AI
Search across all available documentation for this part.
74AUP2G02RA3-7
ActiveIC GATE NOR 2CH 2-INP DFN1210-8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74AUP2G02RA3-7 |
|---|---|
| Current - Output High, Low [custom] | 4 mA |
| Current - Output High, Low [custom] | 4 mA |
| Current - Quiescent (Max) [Max] | 500 nA |
| Input Logic Level - High [Max] | 2 V |
| Input Logic Level - High [Min] | 1.6 V |
| Logic Type | NOR Gate |
| Max Propagation Delay @ V, Max CL | 5.4 ns |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-XFDFN |
| Supplier Device Package | X2-DFN1210-8 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.13 | |
| 10000 | $ 0.13 | |||
| 15000 | $ 0.12 | |||
| 25000 | $ 0.12 | |||
| 35000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
Description
General part information
74AUP2G02 Series
"The Advanced Ultra Low Power (AUP) CMOS logic family is designed for low power and extended battery life in portable applications. The 74AUP2G02 is a dual two input NOR gate. Both gates have push-pull outputs designed for operation over a power supply range of 0.8 V to 3.6 V. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. "
