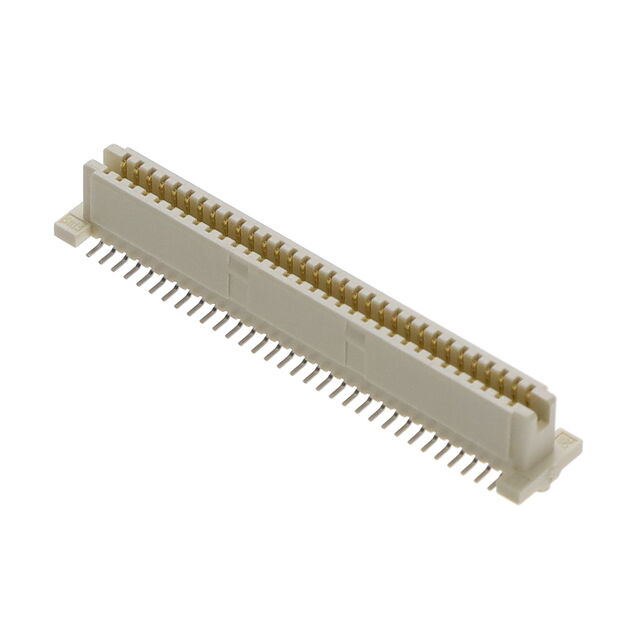

245015064100863+

Active

Kyocera AVX

HEADER CONNECTOR,PCB MNT,PLUG,64 CONTACTS,SKT,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Kyocera AVX

HEADER CONNECTOR,PCB MNT,PLUG,64 CONTACTS,SKT,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	245015064100863+

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Features	Pick and Place, Board Guide
Mated Stacking Heights	10 mm, 15 mm, 13 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	64
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Features	Connector Type	Mounting Type	Mated Stacking Heights	Number of Positions	Height Above Board [z]	Height Above Board [z]
Kyocera AVX 245015064100861+	0.039 in	1 mm	Gold	2	Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	8 mm 10 mm 13 mm 15 mm	64
Kyocera AVX 245015064103861+	0.039 in	1 mm	Gold	2	Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	8 mm 10 mm 13 mm 15 mm	64
Kyocera AVX 245015064005861+	0.039 in	1 mm	Gold	2	Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	8 mm 10 mm 13 mm 15 mm	64	0.417 in	10.6 mm
Kyocera AVX 245015064105863+	0.039 in	1 mm	Gold	2	Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	8 mm 10 mm 13 mm 15 mm	64	0.417 in	10.6 mm
Kyocera AVX 245015064000863+	0.039 in	1 mm	Gold	2	Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	8 mm 10 mm 13 mm 15 mm	64
Kyocera AVX 245015064100863+	0.039 in	1 mm	Gold	2	Board Guide Pick and Place	Receptacle Outer Shroud Contacts	Surface Mount	8 mm 10 mm 13 mm 15 mm	64

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

64 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
