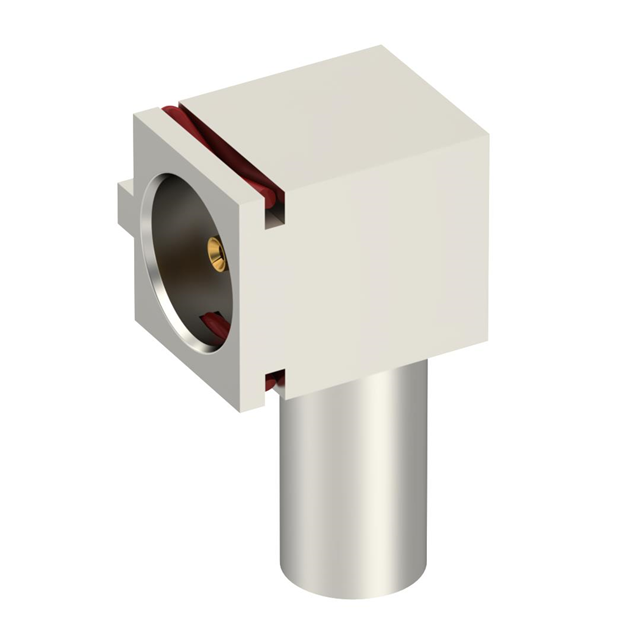

R210160020

Active

Radiall USA, Inc.

MMT / FEMALE RIGHT ANGLE CABLE P

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMT / FEMALE RIGHT ANGLE CABLE P

Technical Specifications

Parameters and characteristics for this part

Specification	R210160020

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold, Nickel
Connector Style	MMT
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	8 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	170 V

Part	Impedance	Cable Group	Fastening Type	Shield Termination	Center Contact Plating	Contact Termination	Number of Ports	Connector Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Body Finish	Housing Color	Frequency - Max [Max]	Connector Style	Voltage Rating	Center Contact Material	Body Material	Mounting Type
Radiall USA, Inc. R210160020	50 Ohms	RG-178	Snap-On	Crimp	Gold Nickel	Crimp	1	Female Socket Plug	500	100 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Nickel	Silver	8 GHz	MMT	170 V	Beryllium Copper	Brass	Free Hanging (In-Line) Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.89

General part information

MMT Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
