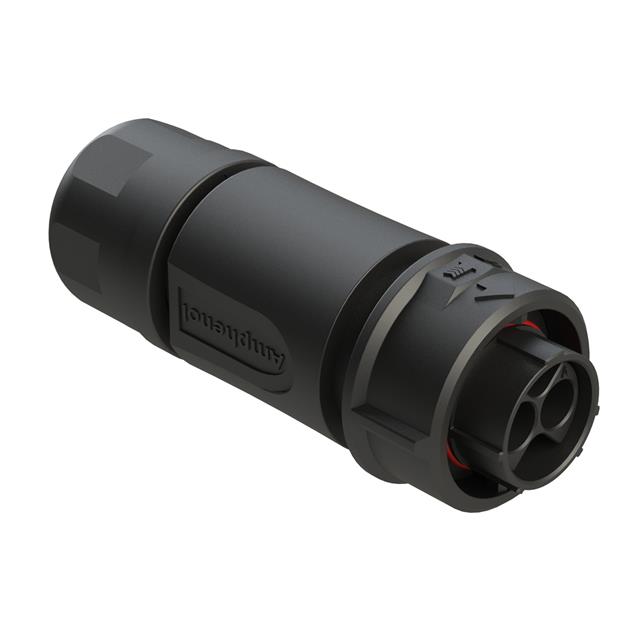

FLS6BS12N2P03

Active

Amphenol Sine Systems Corp

4 (2+2) POSITION PLUG, PIN, SHEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FLS6BS12N2P03

Active

Amphenol Sine Systems Corp

4 (2+2) POSITION PLUG, PIN, SHEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FLS6BS12N2P03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	12 (2), 20 (2)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	12-4
Shielding	Unshielded
Type	For Male Pins

FLS6BS Series

Part	Material Flammability Rating	Shielding	Connector Type	Orientation	Type	Note	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Contact Size	Fastening Type	Insert Material	Contact Type	Shell Size - Insert	Primary Material	Housing Color	Mounting Type	Features	Contact Shape	Number of Positions	Contact Size	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Amphenol Sine Systems Corp FLS6BS10N3S03	UL94 V-0	Unshielded	Plug Housing	N	For Female Sockets	Contacts Not Included	125 °C	-40 °C	IP67 IP68 IP69K	16	Bayonet Lock	Thermoplastic	Crimp	10-3	Plastic	Black	Free Hanging (In-Line)	Backshell Coupling Nut	Circular
Amphenol Sine Systems Corp FLS6BS14N3S03	UL94 V-0	Unshielded	Plug Housing	N	For Female Sockets	Contacts Not Included	125 °C	-40 °C	IP67 IP68 IP69K	8	Bayonet Lock	Thermoplastic	Crimp	14-3	Plastic	Black	Free Hanging (In-Line)	Backshell Coupling Nut	Circular
Amphenol Sine Systems Corp FLS6BS10N3P03	UL94 V-0	Unshielded	Plug Housing	N	For Female Sockets	Contacts Not Included	125 °C	-40 °C	IP67 IP68 IP69K	16	Bayonet Lock	Thermoplastic	Crimp	10-3	Plastic	Black	Free Hanging (In-Line)	Backshell Coupling Nut	Circular
Amphenol Sine Systems Corp FLS6BS10N4P03	UL94 V-0	Unshielded	Plug Housing	N	For Female Sockets	Contacts Not Included	125 °C	-40 °C	IP67 IP68 IP69K	16	Bayonet Lock	Thermoplastic	Crimp	10-4	Plastic	Black	Free Hanging (In-Line)	Backshell Coupling Nut	Circular	4
Amphenol Sine Systems Corp FLS6BS10N2S03	UL94 V-0	Unshielded	Plug Housing	N	For Female Sockets	Contacts Not Included	125 °C	-40 °C	IP67 IP68 IP69K		Bayonet Lock	Thermoplastic	Crimp	10-4	Plastic	Black	Free Hanging (In-Line)	Backshell Coupling Nut	Circular	4	16 (2) 20 (2)
Amphenol Sine Systems Corp FLS6BS12N2P03	UL94 V-0	Unshielded	Plug Housing	N	For Male Pins	Contacts Not Included	125 °C	-40 °C	IP67 IP68 IP69K		Bayonet Lock	Thermoplastic	Crimp	12-4	Plastic	Black	Free Hanging (In-Line)	Backshell Coupling Nut	Circular	4	12 (2) 20 (2)
Amphenol Sine Systems Corp FLS6BS14N7P03	UL94 V-0	Unshielded	Plug Housing	N	For Male Pins	Contacts Not Included	125 °C	-40 °C	IP67 IP68 IP69K	16	Bayonet Lock	Thermoplastic	Crimp		Plastic	Black	Free Hanging (In-Line)	Backshell Coupling Nut	Circular	7		14	7
Amphenol Sine Systems Corp FLS6BS10N6P03	UL94 V-0	Unshielded	Plug Housing	N	For Female Sockets	Contacts Not Included	125 °C	-40 °C	IP67 IP68 IP69K	20	Bayonet Lock	Thermoplastic	Crimp	10-6	Plastic	Black	Free Hanging (In-Line)	Backshell Coupling Nut	Circular	6
Amphenol Sine Systems Corp FLS6BS14N4P03	UL94 V-0	Unshielded	Plug Housing	N	For Male Pins	Contacts Not Included	125 °C	-40 °C	IP67 IP68 IP69K	12	Bayonet Lock	Thermoplastic	Crimp		Plastic	Black	Free Hanging (In-Line)	Backshell Coupling Nut	Circular	4		14	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.93
		10	$ 13.23
		25	$ 12.73
		50	$ 12.22
		100	$ 11.54
		250	$ 10.52
		500	$ 9.84
		1000	$ 9.03

Description

General part information

FLS6BS Series

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
