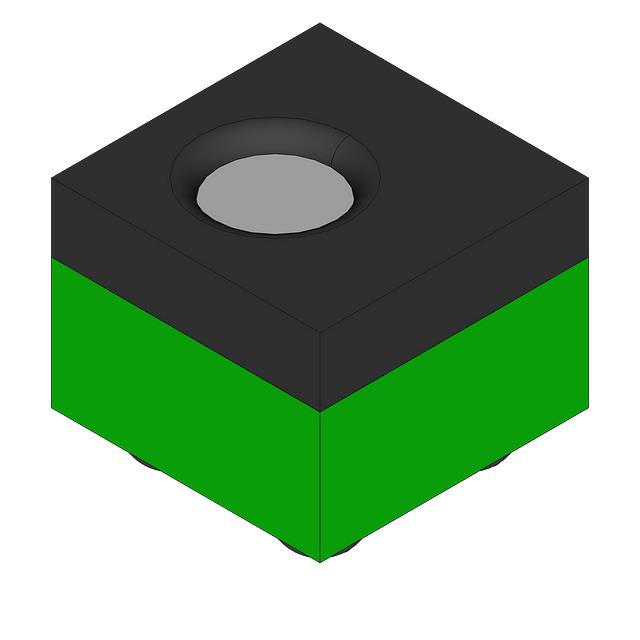

LP5900TL-1.575/NOPB
ActiveNational Semiconductor
IC REG LIN FIXED POS STNDRD REG
Deep-Dive with AI
Search across all available documentation for this part.
LP5900TL-1.575/NOPB
ActiveNational Semiconductor
IC REG LIN FIXED POS STNDRD REG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LP5900TL-1.575/NOPB |
|---|---|
| Control Features | Enable |
| Current - Output | 150 mA |
| Current - Quiescent (Iq) | 50 çA |
| Current - Supply (Max) [Max] | 230 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | DSBGA, 4-WFBGA |
| PSRR [Max] | 85 dB |
| PSRR [Min] | 40 dB |
| Supplier Device Package | 4-DSBGA (1x1) |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 1.575 V |
| Voltage Dropout (Max) [Max] | 0.15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1066 | $ 0.28 | |
Description
General part information
LP5900 Series
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 4-DSBGA (1x1)
Documents
Technical documentation and resources
No documents available
