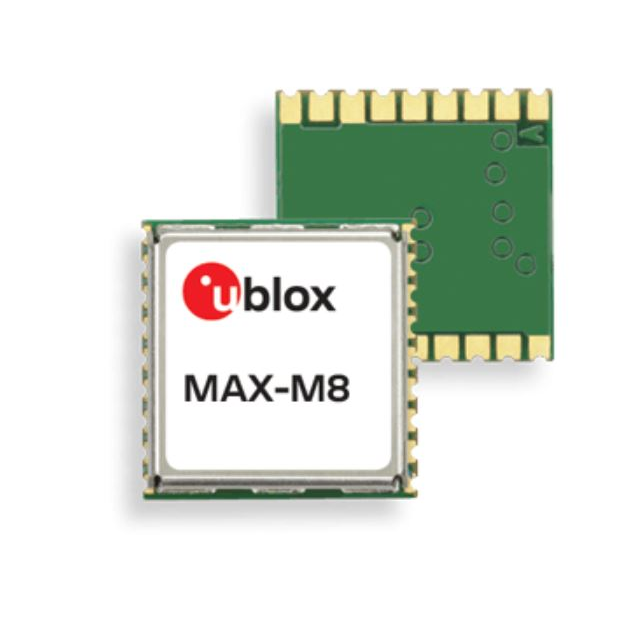

MAX-M8W-0
Activeu-blox
RF RCVR GNSS/GPS 1.575GHZ 18LCC
Deep-Dive with AI
Search across all available documentation for this part.
MAX-M8W-0
Activeu-blox
RF RCVR GNSS/GPS 1.575GHZ 18LCC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MAX-M8W-0 |
|---|---|
| Antenna Connector | Not Included |
| Applications | General Purpose |
| Current - Receiving | 23 mA |
| Data Interface | I2C, UART |
| Frequency | 1.575 GHz |
| Modulation or Protocol | GNSS, Galileo, BeiDou, GLONASS, GPS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 18-SMD Module |
| Sensitivity | -167 dBm |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 27.00 | |
| 10 | $ 23.50 | |||
| 50 | $ 19.30 | |||
| 100 | $ 16.40 | |||
| Digi-Reel® | 1 | $ 27.00 | ||
| 10 | $ 23.50 | |||
| 50 | $ 19.30 | |||
| 100 | $ 16.40 | |||
| Tape & Reel (TR) | 500 | $ 15.41 | ||
Description
General part information
MAX-M8 Series
MAX-M8 RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.575GHz -167dBm Not Included
Documents
Technical documentation and resources
No documents available
