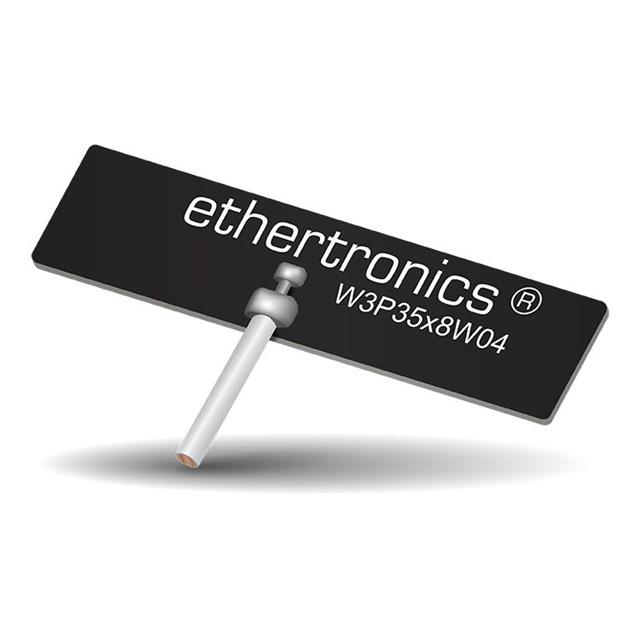

W3P35X8W04-U100D3B0A
ActiveKyocera AVX
PCB ANTENNA, 5.925-7.125GHZ, 2.5DBI ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W3P35X8W04-U100D3B0A |
|---|---|
| Antenna Type | PCB Trace |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 6.475 GHz, 5.5 GHz, 2.44 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 7.125 GHz, 5.85 GHz, 2.48 GHz |
| Frequency Range [Min] | 2.4 GHz, 5.15 GHz, 5.825 GHz |
| Gain | 2.3 dBi, 5 dBi, 2.5 dBi |
| Height (Max) [Max] [z] | 0.016 in |
| Height (Max) [Max] [z] | 0.4 mm |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Return Loss | -10 dB, -6 dB, -15 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | U.FL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
W3P35X8 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ PCB Trace U.FL Adhesive
