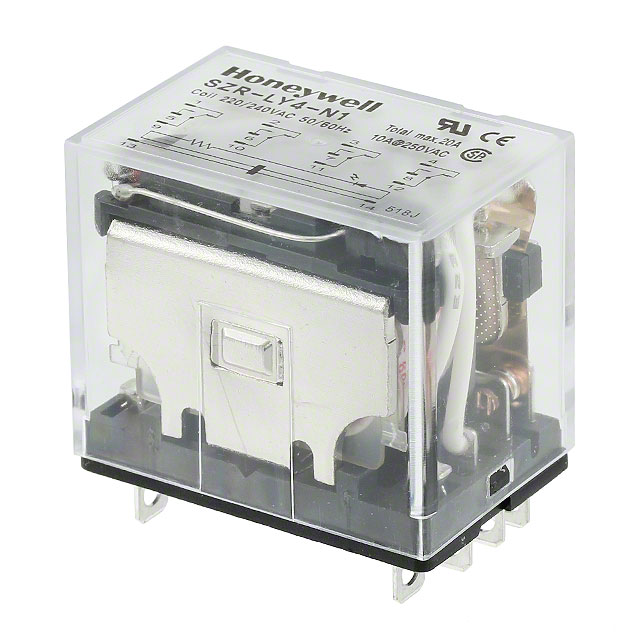

SZR-LY4-N1-AC220V

Active

Honeywell Sensing and Productivity Solutions

RELAY GEN PURPOSE 4PDT 10A 220V

Deep-Dive with AI

Search across all available documentation for this part.

SZR-LY4-N1-AC220V

Active

Honeywell Sensing and Productivity Solutions

RELAY GEN PURPOSE 4PDT 10A 220V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SZR-LY4-N1-AC220V

Approval Agency	CSA, UR, CE
Coil Current	13.8 mA
Coil Resistance	6.7 kOhms
Coil Type	Non Latching
Coil Voltage	220 VAC/DC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Features	Lighted Indicator
Load - Max Switching	2500 VA, 1250 W
Mounting Type	Socketable
Must Operate Voltage	176 VAC
Must Release Voltage	66 VAC
Operate Time	25 ms
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	250 VAC, 125 VDC
Termination Style	Plug In

SZR-LY4 Series

Part	Termination Style	Contact Form	Contact Material	Relay Type	Must Release Voltage	Approval Agency	Switching Voltage	Coil Voltage	Contact Rating (Current)	Operate Time	Must Operate Voltage	Coil Current	Features	Coil Resistance	Coil Type	Mounting Type	Release Time	Load - Max Switching	Coil Voltage [Min]	Coil Voltage [Max]
Honeywell Sensing and Productivity Solutions SZR-LY4-N1AC110V	Plug In Quick Connect - 0.197" (5.0mm)	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose	33 VAC	CE CSA UR	125 VDC 250 VAC	110 VAC/DC	10 A	25 ms	88 VAC/DC	22.7 mA	Lighted Indicator	4.84 kOhms	Non Latching	Socketable	25 ms	1250 W 2500 VA
Honeywell Sensing and Productivity Solutions SZR-LY4-N1-DC12V	Plug In	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose	1.2 VDC	CE CSA UR	125 VDC 250 VAC	12 VDC	10 A	25 ms	9.6 VDC	124 mA	Lighted Indicator	100 Ohms	Non Latching	Socketable	25 ms	1250 W 2500 VA
Honeywell Sensing and Productivity Solutions SZR-LY4-N1-DC24V	Plug In	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose	2.4 VDC	CE CSA UR	125 VDC 250 VAC	24 VDC	10 A	25 ms	19.2 VDC	73 mA	Lighted Indicator	350 Ohms	Non Latching	Socketable	25 ms	1250 W 2500 VA
Honeywell Sensing and Productivity Solutions SZR-LY4-D1-DC24V	Plug In	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose	2.4 VDC	CE CSA UR	125 VDC 250 VAC	24 VDC	10 A	25 ms	19.2 VDC	69 mA	Diode	350 Ohms	Non Latching	Socketable	25 ms	1250 W 2500 VA
Honeywell Sensing and Productivity Solutions SZR-LY4-N1DC100V	Plug In Quick Connect - 0.197" (5.0mm)	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose	10 VDC	CE CSA UR	125 VDC 250 VAC	100 VDC	10 A	25 ms	80 VDC	15 mA	Lighted Indicator	6.667 kOhms	Non Latching	Socketable	25 ms	1250 W 2500 VA
Honeywell Sensing and Productivity Solutions SZR-LY4-X1-DC24V	Plug In	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose	2.4 VDC	CE CSA UR	125 VDC 250 VAC	24 VDC	10 A	25 ms	19.2 VDC	73 mA	Diode Lighted Indicator	350 Ohms	Non Latching	Socketable	25 ms	1250 W 2500 VA
Honeywell Sensing and Productivity Solutions SZR-LY4-N1-AC220V	Plug In	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose	66 VAC	CE CSA UR	125 VDC 250 VAC	220 VAC/DC	10 A	25 ms	176 VAC	13.8 mA	Lighted Indicator	6.7 kOhms	Non Latching	Socketable	25 ms	1250 W 2500 VA
Honeywell Sensing and Productivity Solutions SZR-LY4-1P-DC24V	PC Pin	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose	2.4 VDC	CE CSA UR	125 VDC 250 VAC	24 VDC	10 A	25 ms	19.2 VDC	69 mA		350 Ohms	Non Latching	Through Hole	25 ms	1250 W 2500 VA
Honeywell Sensing and Productivity Solutions SZR-LY4N1AC220/240	Plug In Quick Connect - 0.197" (5.0mm)	4PDT (4 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose		CE CSA UR	125 VDC 250 VAC		10 A	25 ms			Lighted Indicator		Non Latching	Socketable	25 ms	1250 W 2500 VA	220 VAC	240 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SZR-LY4 Series

General Purpose Relay 4PDT (4 Form C) 220VAC Coil Socketable
