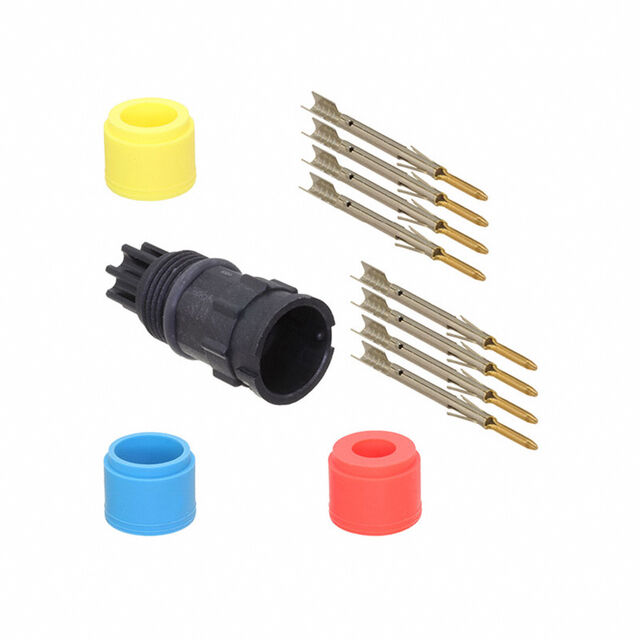

ABD-08BMMC-LL7AP0

Active

Amphenol LTW

CONN RCPT MALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	ABD-08BMMC-LL7AP0

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VDC

Part	Current Rating (Amps)	Primary Material	Shell Material	Contact Finish - Mating	Voltage Rating	Material Flammability Rating	Shielding	Features	Contact Material	Ingress Protection	Shell Size - Insert	Insert Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Fastening Type	Orientation	Connector Type	Number of Positions	Termination	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating
Amphenol LTW ABD-08BMMC-LL7MP0	5 A	Plastic	Glass Filled Nylon Polyamide (PA)	Gold	250 VDC	UL94 V-0	Unshielded	Backshell	Copper Alloy	IP67 - Dust Tight Waterproof	B	Polyamide (PA) Nylon Glass Filled	8 mm	6 mm	0.315 in	0.236 in	Bayonet Lock	Keyed	Male Pins Plug	8	Crimp	Free Hanging (In-Line)	Black	-40 °C	105 ░C
Amphenol LTW ABD-08BMMC-LL7LP0	5 A	Plastic	Glass Filled Nylon Polyamide (PA)	Gold	250 VDC	UL94 V-0	Unshielded	Backshell	Copper Alloy	IP67 - Dust Tight Waterproof	B	Polyamide (PA) Nylon Glass Filled	10 mm	8 mm	0.394 in	0.315 in	Bayonet Lock	Keyed	Male Pins Plug	8	Crimp	Free Hanging (In-Line)	Black	-40 °C	105 ░C
Amphenol LTW ABD-08BMMC-LL7AP0	5 A	Plastic	Glass Filled Nylon Polyamide (PA)	Gold	300 VDC	UL94 V-0	Unshielded	Backshell	Copper Alloy	IP67 - Dust Tight Waterproof	B	Polyamide (PA) Nylon Glass Filled					Bayonet Lock	Keyed	Male Pins Receptacle	8	Crimp	Free Hanging (In-Line)	Black	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (Data) Position Circular Connector Receptacle, Male Pins Crimp
