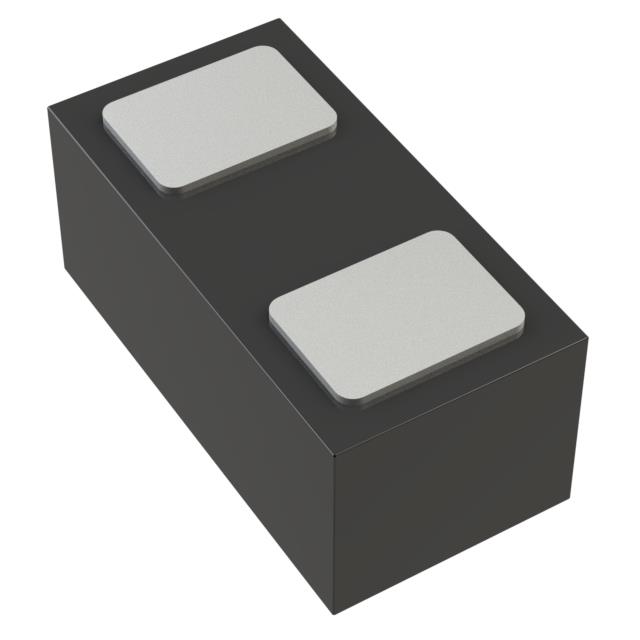

UCLAMP0541Z.TNT
ObsoleteSemtech Corporation
TVS DIODE 5VWM 15VC SLP0603P2X3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCLAMP0541Z.TNT
ObsoleteSemtech Corporation
TVS DIODE 5VWM 15VC SLP0603P2X3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCLAMP0541Z.TNT |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 6.5 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Power - Peak Pulse | 25 W |
| Power Line Protection | False |
| Supplier Device Package | SLP0603P2X3 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 15 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.15 | |||
| 2000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.15 | |||
| 2000 | $ 0.13 | |||
| Tape & Reel (TR) | 10000 | $ 0.12 | ||
| 30000 | $ 0.12 | |||
| 50000 | $ 0.11 | |||
Description
General part information
UCLAMP0541 Series
15V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount SLP0603P2X3
