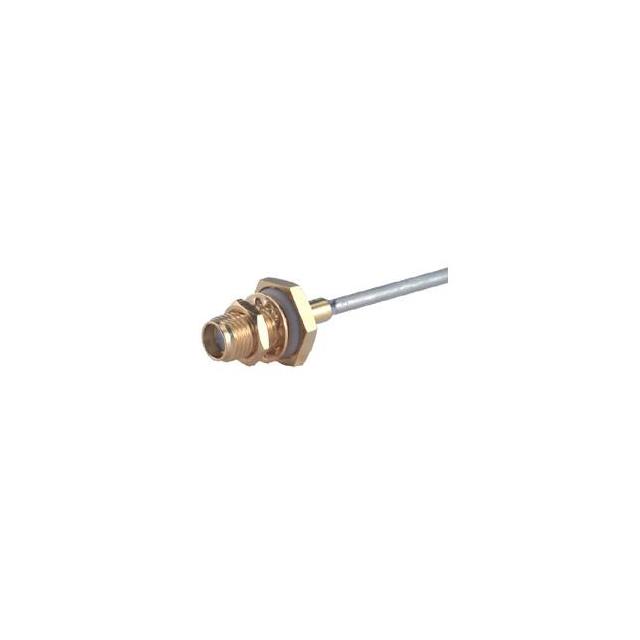

24_SMA-50-3-15/111_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

24_SMA-50-3-15/111_NE

Active

Huber+Suhner, Inc.

24_SMA-50-3-15/111_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	24_SMA-50-3-15/111_NE

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-141
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

24_SMA-50 Series

Part	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Dielectric Material	Housing Color	Mating Cycles	Contact Termination	Body Material	Cable Group	Shield Termination	Connector Type	Center Contact Plating	Connector Style	Frequency - Max [Max]	Impedance	Number of Ports	Body Finish
Huber+Suhner, Inc. 24_SMA-50-2-45/133_NH	Beryllium Copper	-65 ░C	165 °C	Bulkhead - Front Side Nut	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	500	Solder	Brass	RD-316	Crimp	Female Socket Jack	Gold	SMA	18 GHz	50 Ohms	1	White Bronze
Huber+Suhner, Inc. 24_SMA-50-3-17/111_NH	Beryllium Copper	-65 ░C	165 °C	Bulkhead - Front Side Nut	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Solder	Brass	RG-141	Solder	Female Socket Jack	Gold	SMA	18 GHz	50 Ohms	1	Gold
Huber+Suhner, Inc. 24_SMA-50-2-15/111_NE	Beryllium Copper	-65 ░C	165 °C	Bulkhead - Front Side Nut	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Solder	Beryllium Copper	RG-405	Solder	Female Socket Jack	Gold	SMA	18 GHz	50 Ohms	1	Gold
Huber+Suhner, Inc. 24_SMA-50-2-14/111_NE	Beryllium Copper	-65 ░C	165 °C	Bulkhead - Front Side Nut	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Solder	Beryllium Copper	188 316 RG-174	Crimp	Female Socket Jack	Gold	SMA	18 GHz	50 Ohms	1	Gold
Huber+Suhner, Inc. 24_SMA-50-2-43/133_NH
Huber+Suhner, Inc. 24_SMA-50-2-14/111_NH	Beryllium Copper	-65 ░C	165 °C	Bulkhead - Front Side Nut	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Solder	Brass	188 316 RG-174	Crimp	Female Socket Jack	Gold	SMA	18 GHz	50 Ohms	1	Gold
Huber+Suhner, Inc. 24_SMA-50-3-15/111_NE	Beryllium Copper	-65 ░C	165 °C	Bulkhead - Front Side Nut	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Solder	Beryllium Copper	RG-141	Solder	Female Socket Jack	Gold	SMA	18 GHz	50 Ohms	1	Gold
Huber+Suhner, Inc. 24_SMA-50-2-15/111_NH	Beryllium Copper	-65 ░C	165 °C	Bulkhead - Front Side Nut	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Solder	Beryllium Copper		Solder	Female Socket Jack	Gold	SMA	18 GHz	50 Ohms	1	Gold
Huber+Suhner, Inc. 24_SMA-50-2-13/111_NE	Beryllium Copper	-65 ░C	165 °C	Bulkhead - Front Side Nut	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	500	Solder	Beryllium Copper	RD-316	Crimp	Female Socket Jack	Gold	SMA	18 GHz	50 Ohms	1	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.33
		10	$ 23.05
		25	$ 22.06
		50	$ 21.35
		100	$ 20.63
		250	$ 19.50
		500	$ 18.93

Description

General part information

24_SMA-50 Series

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
