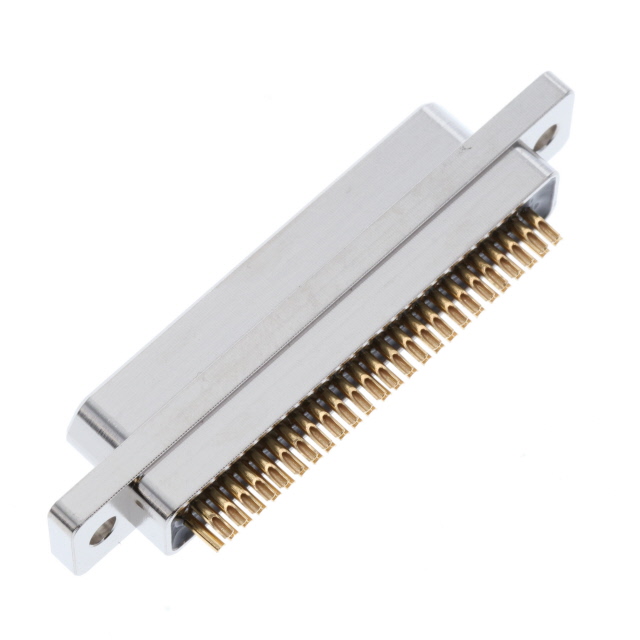

A98000-512

Active

Omnetics

CONN MICRO-D PLUG 51POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D PLUG 51POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A98000-512

Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	51
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05
Shell Size, Connector Layout [custom]	0.05

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Current Rating (Amps)	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Shell Material, Finish	Contact Finish	Number of Positions	Contact Material	Contact Form
Omnetics A98000-512	Free Hanging (In-Line)	50 µin	1.27 µm	D-Type Micro-D	2	0.05	0.05	Thermoplastic	3 A	Housing/Shell (Unthreaded)	-55 °C	125 °C	Male Pins Plug	Signal	Aluminum Electroless Nickel Plated	Gold	51	Copper Alloy	Stamped

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

51 Position D-Type, Micro-D Plug, Male Pins Connector
