SDR6603-2R2M

Active

Bourns Inc.

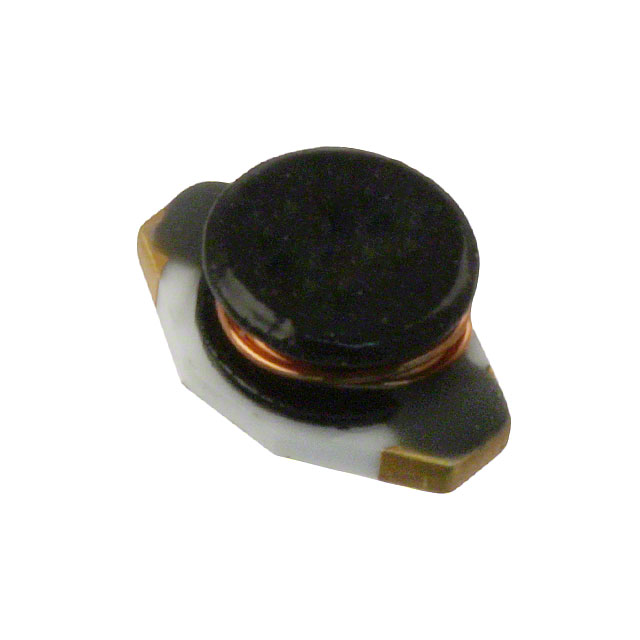

3806X4.45X2.92MM,2.2UH20%2.4A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDR6603-2R2M

Active

Bourns Inc.

3806X4.45X2.92MM,2.2UH20%2.4A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDR6603-2R2M

Current - Saturation (Isat)	2.3 A
Current Rating (Amps)	2.4 A
DC Resistance (DCR) [Max]	70 mOhm
Frequency - Self Resonant	90 MHz
Inductance	2.2 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	18, 7.96 MHz
Shielding	Unshielded
Size / Dimension [x]	6.6 mm
Size / Dimension [x]	0.26 in
Size / Dimension [y]	4.45 mm
Size / Dimension [y]	0.175 in
Tolerance	20 %
Type	Wirewound, Drum Core

SDR6603 Series

Part	Current Rating (Amps)	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq	Shielding	Mounting Type	Current - Saturation (Isat)	Frequency - Self Resonant	Material - Core	Package / Case	Type	Tolerance	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. SDR6603-2R2M	2.4 A	2.2 µH	4.45 mm	0.175 in	6.6 mm	0.26 in	100 kHz	125 °C	-40 °C	7.96 MHz 18	Unshielded	Surface Mount	2.3 A	90 MHz	Ferrite	Nonstandard	Drum Core Wirewound	20 %	70 mOhm
Bourns Inc. SDR6603-330M	600 mA	33 µH	4.45 mm	0.175 in	6.6 mm	0.26 in	100 kHz	125 °C	-40 °C	2.52 MHz 24	Unshielded	Surface Mount	580 mA	15 MHz	Ferrite	Nonstandard	Drum Core Wirewound	20 %	510 mOhm
Bourns Inc. SDR6603-151M	0.25 A	150 µH	4.45 mm	0.175 in	6.6 mm	0.26 in	100 kHz	125 °C	-40 °C	41 796 kHz	Unshielded	Surface Mount	270 mA	6 MHz	Ferrite	Nonstandard	Drum Core Wirewound	20 %	2 Ohm
Bourns Inc. SDR6603-6R8M	1.4 A	6.8 µH	4.45 mm	0.175 in	6.6 mm	0.26 in	100 kHz	125 °C	-40 °C	7.96 MHz 15.5	Unshielded	Surface Mount	1.2 A	45 MHz	Ferrite	Nonstandard	Drum Core Wirewound	20 %	130 mOhm
Bourns Inc. SDR6603-1R0M	2.9 A	1 µH	4.45 mm	0.175 in	6.6 mm	0.26 in	100 kHz	125 °C	-40 °C	7.96 MHz 20	Unshielded	Surface Mount	2.9 A	130 MHz	Ferrite	Nonstandard	Drum Core Wirewound	20 %		50 mOhm
Bourns Inc. SDR6603-1R5M	2.8 A	1.5 µH	4.45 mm	0.175 in	6.6 mm	0.26 in	100 kHz	125 °C	-40 °C	7.96 MHz 19	Unshielded	Surface Mount	2.6 A	115 MHz	Ferrite	Nonstandard	Drum Core Wirewound	20 %		50 mOhm
Bourns Inc. SDR6603-102M	70 mA	1 mH	4.45 mm	0.175 in	6.6 mm	0.26 in	100 kHz	125 °C	-40 °C	71 252 kHz	Unshielded	Surface Mount	100 mA	2 MHz	Ferrite	Nonstandard	Drum Core Wirewound	20 %		13.8 Ohm
