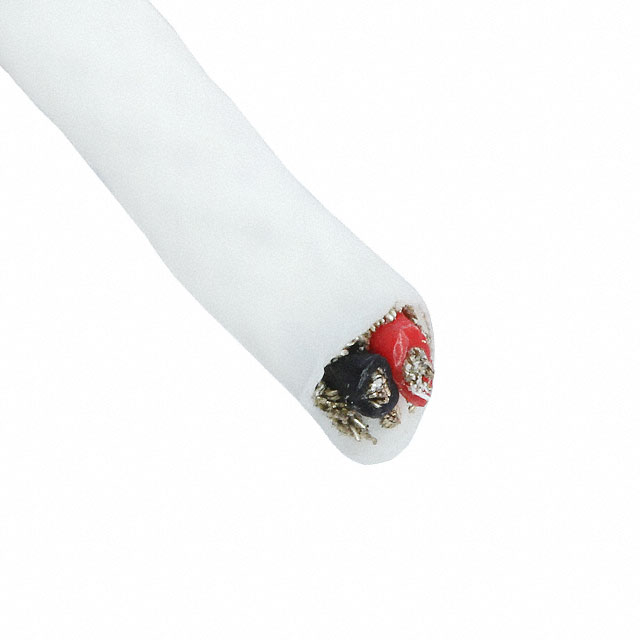

M1223 WH005

Active

ALPHA WIRE

CABLE 3CON 22AWG WHT SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3CON 22AWG WHT SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M1223 WH005

Cable Type	Multi-Conductor
Conductor Insulation	Polytetrafluoroethylene (PTFE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.0118 in
Jacket (Insulation) Thickness	0.3 mm
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Conductor Insulation	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Strand [custom]	Conductor Strand	Voltage	Length [x]	Length [x]	Shield Material	Shield Type	Cable Type	Number of Conductors
ALPHA WIRE M1223 WH005	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)	Copper Tinned	-55 °C	200 °C	85 %	0.0118 in	0.3 mm	22 AWG	19 Strands	34 AWG	600 V	30.5 m	100 ft	Copper Silver Coated	Braid	Multi-Conductor	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable White 22 AWG Braid 100.0' (30.5m)
