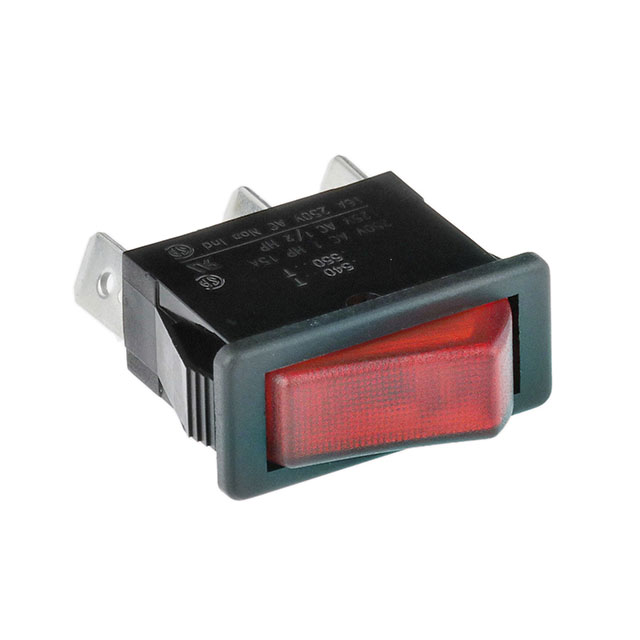

C5503ATNAB
ActiveBULGIN LIMITED
SWITCH ROCK ON-OFF ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
C5503ATNAB
ActiveBULGIN LIMITED
SWITCH ROCK ON-OFF ILLUM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C5503ATNAB |
|---|---|
| null | |
C5503AT Series
| Part | Current Rating (Amps) | Illumination Type, Color | Illumination Voltage (Nominal) | Voltage Rating - AC | Color - Actuator/Cap | Mounting Type | Termination Style | Switch Function | Approval Agency | Actuator Type | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | 16 A | Incandescent Red | 12 VAC | 250 V | Red | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | CSA UL | Concave (Curved) - Illuminated | No Marking | 11.6 mm | 28.3 mm | SPST |
BULGIN LIMITED | 16 A | Green Neon | 250 VAC | 250 V | Green | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | CSA UL | Concave (Curved) - Illuminated | No Marking | 11.6 mm | 28.3 mm | SPST |
BULGIN LIMITED | ||||||||||||||
BULGIN LIMITED | 16 A | Neon Red | 125 VAC | 250 V | Red | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | CSA UL | Concave (Curved) - Illuminated | No Marking | 11.6 mm | 28.3 mm | SPST |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 2.17 | |
| 10 | $ 1.87 | |||
| 25 | $ 1.76 | |||
| 50 | $ 1.69 | |||
| 100 | $ 1.61 | |||
| 250 | $ 1.52 | |||
| 500 | $ 1.46 | |||
| 1000 | $ 1.39 | |||
Description
General part information
C5503AT Series
Rocker Switch
