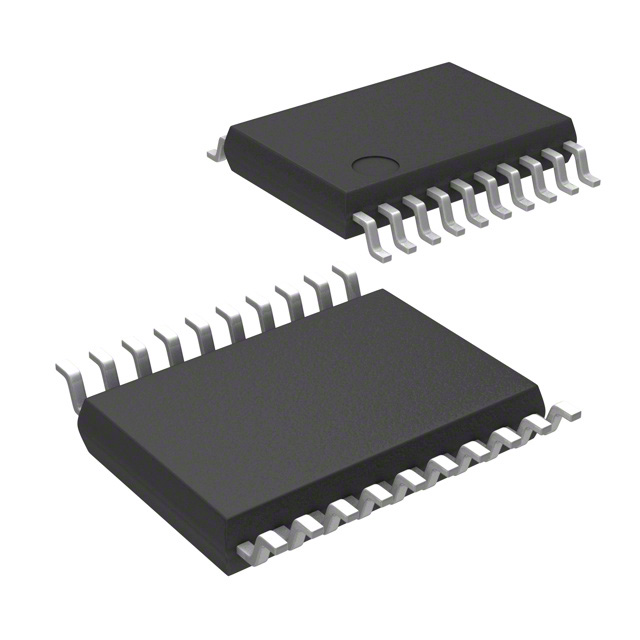

TC74LCX541FK(EL,K)
ActiveToshiba Semiconductor and Storage
IC BUF NON-INVERT 3.6V 20VSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC74LCX541FK(EL,K)
ActiveToshiba Semiconductor and Storage
IC BUF NON-INVERT 3.6V 20VSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC74LCX541FK(EL,K) |
|---|---|
| Current - Output High, Low | 24 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |
| Package / Case | 20-VFSOP |
| Package / Case [x] | 0.118 in |
| Package / Case [y] | 3 mm |
| Supplier Device Package | 20-VSSOP |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.13 | |
| Digi-Reel® | 1 | $ 1.13 | ||
| Tape & Reel (TR) | 2500 | $ 0.27 | ||
| 5000 | $ 0.25 | |||
| 7500 | $ 0.23 | |||
| 12500 | $ 0.22 | |||
| 17500 | $ 0.22 | |||
Description
General part information
74LCX541 Series
Buffer, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-VSSOP
