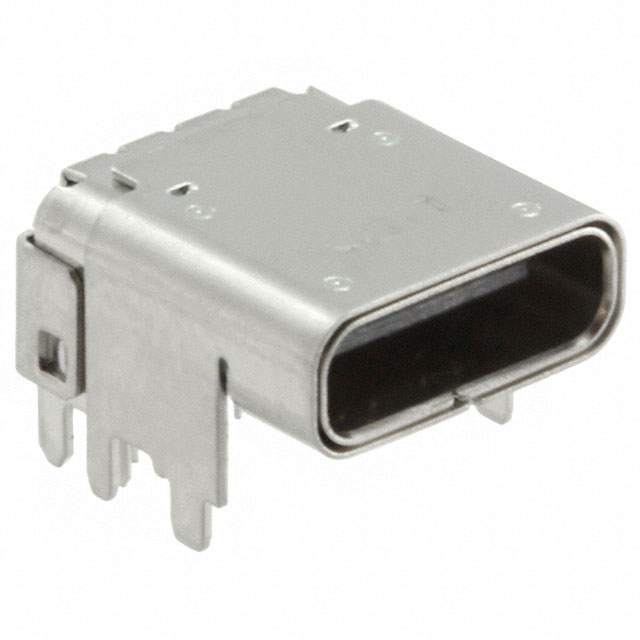

C-ARA1-AK512
ActiveCnC Tech, LLC
CONN RCP USB3.0 TYPEC 24P SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
C-ARA1-AK512
ActiveCnC Tech, LLC
CONN RCP USB3.0 TYPEC 24P SMD RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C-ARA1-AK512 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.34 | |
| 10 | $ 3.94 | |||
| 25 | $ 3.73 | |||
| 50 | $ 3.65 | |||
| 100 | $ 3.47 | |||
| 250 | $ 3.04 | |||
| Digi-Reel® | 1 | $ 4.34 | ||
| 10 | $ 3.94 | |||
| 25 | $ 3.73 | |||
| 50 | $ 3.65 | |||
| 100 | $ 3.47 | |||
| 250 | $ 3.04 | |||
| Tape & Reel (TR) | 500 | $ 2.95 | ||
| 1000 | $ 2.52 | |||
| 1500 | $ 2.43 | |||
| 2500 | $ 2.35 | |||
Description
General part information
C-ARA1-AK Series
USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
