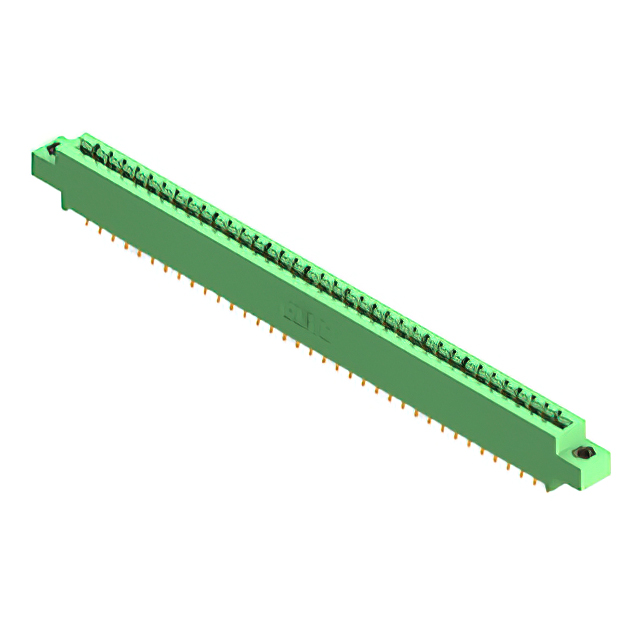

337-072-556-807
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-072-556-807
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-072-556-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
337-072 Series
...
| Part | Features | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Flange Feature | Number of Rows | Pitch [x] | Pitch [x] | Material - Insulation | Number of Positions/Bay/Row [custom] | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Color | Termination Rows | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Card Type | Read Out | Mounting Type | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Card Guides | Female | -40 °C | 105 ░C | Cantilever | 4-40 Threaded Insert Top Mount Opening | 2 | 0.156 in | 3.96 mm | Polyester Thermoplastic | 36 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 72 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Dual | Through Hole | Solder Eyelet(s) | ||||
EDAC Inc. | Card Extender | Female | -40 °C | 105 ░C | Cantilever | M3 Threaded Insert Top Mount Opening | 2 | 0.156 in | 3.96 mm | Polyester Thermoplastic | 36 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 72 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Dual | Board Edge Straddle Mount | Solder | ||||
EDAC Inc. | Female | -40 °C | 105 ░C | Cantilever | Flush Mount Top Opening Unthreaded | 2 | 0.156 in | 3.96 mm | Polyester Thermoplastic | 36 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 72 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Dual | Through Hole | Solder Eyelet(s) | 3.25 mm | 0.128 " | |||
EDAC Inc. | Female | -40 °C | 105 ░C | Cantilever | 4-40 Threaded Insert Top Mount Opening | 2 | 0.156 in | 3.96 mm | Polyester Thermoplastic | 36 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 72 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Dual | Through Hole | Solder | |||||
EDAC Inc. | Card Extender | Female | -40 °C | 105 ░C | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 0.156 in | 3.96 mm | Polyester Thermoplastic | 36 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 72 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Dual | Board Edge Straddle Mount | Solder | ||||
EDAC Inc. | Female | -40 °C | 105 ░C | Cantilever | 2 | 0.156 in | 3.96 mm | Polyester Thermoplastic | 36 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 72 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Dual | Through Hole | Wire Wrap | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Female | -40 °C | 105 ░C | Cantilever | Side Mount Opening Unthreaded | 2 | 0.156 in | 3.96 mm | Polyester Thermoplastic | 36 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 72 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Dual | Through Hole | Solder | 3.25 mm | 0.128 in | |||
EDAC Inc. | Female | -40 °C | 105 ░C | Cantilever | Floating Bobbin Top Mount Opening | 2 | 0.156 in | 3.96 mm | Polyester Thermoplastic | 36 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 72 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Dual | Through Hole | Solder Eyelet(s) | 2.95 mm | 0.116 in | |||
EDAC Inc. | Card Extender | Female | -40 °C | 105 ░C | Cantilever | M3 Threaded Insert Top Mount Opening | 2 | 0.156 in | 3.96 mm | Polyester Thermoplastic | 36 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 72 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Dual | Board Edge Straddle Mount | Solder | ||||
EDAC Inc. | Card Guides | Female | -40 °C | 105 ░C | Cantilever | 4-40 Threaded Insert Top Mount Opening | 2 | 0.156 in | 3.96 mm | Polyester Thermoplastic | 36 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 72 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Dual | Through Hole | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.97 | |
Description
General part information
337-072 Series
72 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
