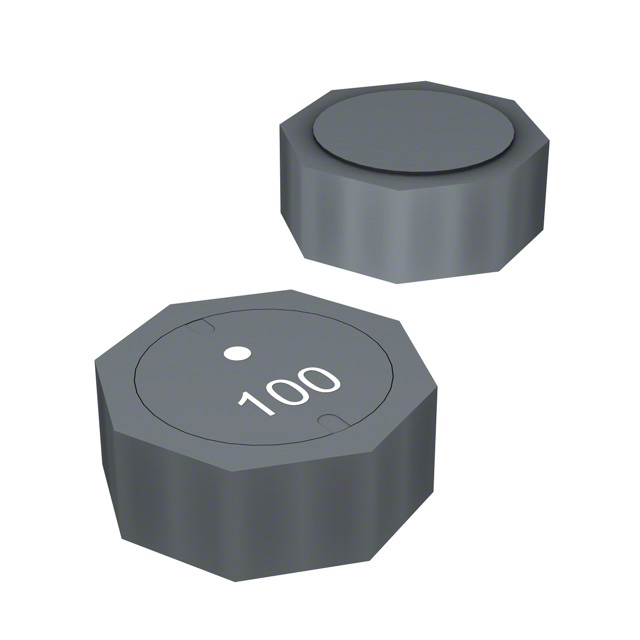

SRU1038-2R5Y

Active

Bourns Inc.

POWER INDUCTOR (SMD), 2.5 ΜH, 6.1 A, SHIELDED, 6 A, SRU1038 SERIES

Search across all available documentation for this part.

Active

Bourns Inc.

POWER INDUCTOR (SMD), 2.5 ΜH, 6.1 A, SHIELDED, 6 A, SRU1038 SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Amps)	Current - Saturation (Isat)	Mounting Type	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Q @ Freq	DC Resistance (DCR)	Material - Core	Type	Shielding
Bourns Inc. SRU1038-3R8Y	Nonstandard	10 mm	0.394 in	10 mm	0.394 "	5.5 Amps	5.5 A	Surface Mount	35 MHz	4.1 mm	0.161 "	100 kHz	3.8 µH	125 °C	-40 °C	30 %	7.96 MHz 14	15 mOhm	Ferrite	Drum Core Wirewound	Shielded
Bourns Inc. SRU1038-2R5Y	Nonstandard	10 mm	0.394 in	10 mm	0.394 "	6.1 A	6 A	Surface Mount	50 MHz	4.1 mm	0.161 "	100 kHz	2.5 µH	125 °C	-40 °C	30 %	7.96 MHz 12	12.5 mOhm	Ferrite	Drum Core Wirewound	Shielded
Bourns Inc. SRU1038-151Y	Nonstandard	10 mm	0.394 in	10 mm	0.394 "	900 mA	800 mA	Surface Mount	5 MHz	4.1 mm	0.161 "	100 kHz	150 µH	125 °C	-40 °C	30 %	20 796 kHz	358 mOhm	Ferrite	Drum Core Wirewound	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.5 µH Shielded Drum Core, Wirewound Inductor 6.1 A 12.5mOhm Nonstandard
