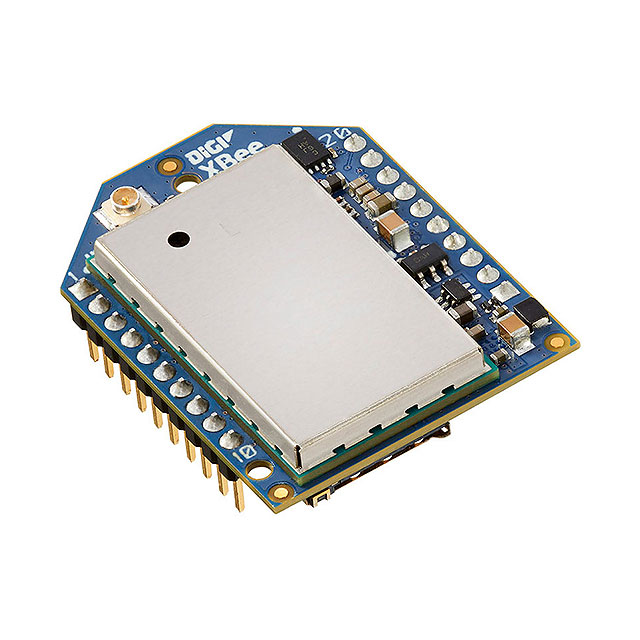

XBC-M5-UT-001
ObsoleteDigi
RF TXRX MOD CELL U.FL TH
Deep-Dive with AI
Search across all available documentation for this part.
XBC-M5-UT-001
ObsoleteDigi
RF TXRX MOD CELL U.FL TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XBC-M5-UT-001 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 7.2 Mbps |
| Frequency | 1800 MHz, 2100 MHz, 900 MHz, 1900 MHz, 800 MHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 24 dBm |
| Protocol | 2G/3G HSPA+ (AT&T) |
| RF Family/Standard | Cellular |
| Serial Interfaces | UART, SPI |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 104.50 | |
Description
General part information
XBC-M5 Series
Cellular 2G/3G HSPA+ (AT&T) Transceiver Module 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz Antenna Not Included, U.FL Through Hole
