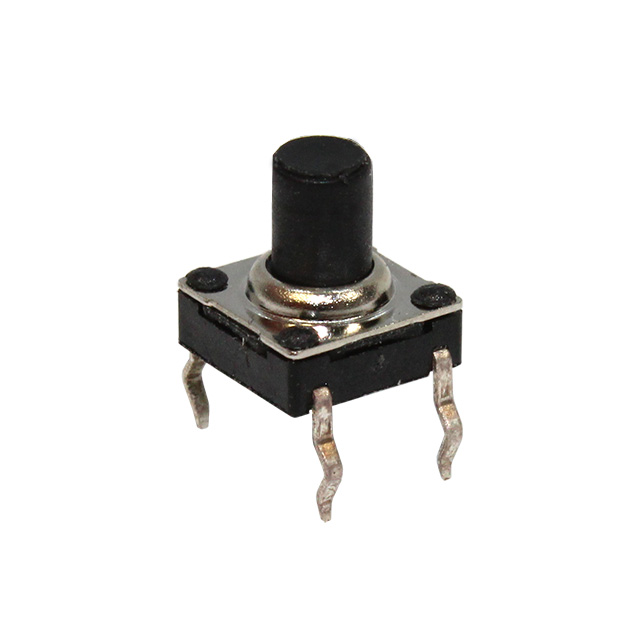

ST5.0LF260Q

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 48V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	ST5.0LF260Q

Actuator Height off PCB, Vertical	5 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 48 VDC
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	7.2 mm
Outline [y]	7.2 mm
Switch Function	Off-Mom
Switch Travel	0.45 mm
Termination Style	PC Pin

Part	Contact Rating @ Voltage	Actuator Material	Illumination	Outline [x]	Outline [y]	Circuit	Termination Style	Actuator Orientation	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Switch Function	Operating Force	Actuator Height off PCB, Vertical
CIT Relay and Switch ST5.0LF260Q	0.05 A 48 VDC	Polybutylene Terephthalate (PBT)	Non-Illuminated	7.2 mm	7.2 mm	SPST-NO	PC Pin	Top Actuated	0.45 mm	85 °C	-40 °C	Standard	Through Hole	Off-Mom	260 gf	5 mm
CIT Relay and Switch ST5.0LF160Q	0.05 A 48 VDC	Polybutylene Terephthalate (PBT)	Non-Illuminated	7.2 mm	7.2 mm	SPST-NO	PC Pin	Top Actuated	0.45 mm	85 °C	-40 °C	Standard	Through Hole	Off-Mom		5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
