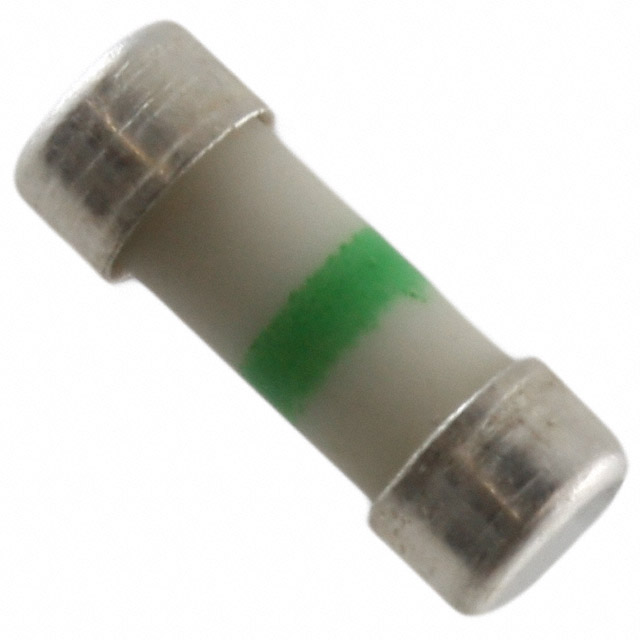

0242.080UR

Active

Littelfuse/Commercial Vehicle Products

FUSE 250V BARRIER FUSE SMT .080A

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSE 250V BARRIER FUSE SMT .080A

Technical Specifications

Parameters and characteristics for this part

Specification	0242.080UR

Applications	Hazardous Locations
Breaking Capacity @ Rated Voltage	4 kA
Current Rating (Amps)	80 mA
DC Cold Resistance	8.19 Ohms
Features	Intrinsically Safe
Fuse Type	Cartridge
Melting I²t	0.000214
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Cartridge, Non-Standard
Response Time	Fast Blow
Size / Dimension [diameter]	3.02 mm
Size / Dimension [diameter]	0.119 "
Size / Dimension [x]	0.331 in
Size / Dimension [x]	8.4 mm
Voltage Rating - AC	250 VAC
Voltage Rating - DC	250 V

FUSE 250V BARRIER FUSE SMT .080A

Part	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Fuse Type	Features	DC Cold Resistance	Package / Case	Mounting Type	Response Time	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - DC	Melting I²t
Littelfuse/Commercial Vehicle Products 0242.080UR	80 mA	4 kA	Cartridge	Intrinsically Safe	8.19 Ohms	Cartridge Non-Standard	Surface Mount	Fast Blow	250 VAC	125 °C	-40 °C	Hazardous Locations	3.02 mm	0.119 "	0.331 in	8.4 mm	250 V	0.000214

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FUSE 250V BARRIER FUSE SMT .080A
