1565 OR005

Active

ALPHA WIRE

HOOK-UP SOLID 18AWG ORANGE 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog

1565 OR005

Active

ALPHA WIRE

HOOK-UP SOLID 18AWG ORANGE 100'

Deep-Dive with AI

DocumentsHook-Up Wire Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1565 OR005

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.072 in
Jacket (Insulation) Diameter [diameter]	1.83 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Jacket Color	Orange
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76B Type MW
Voltage	1000 V
Wire Gauge	18 AWG

1565 Series

Part	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Qualification	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Voltage	Conductor Strand	Length	Length
ALPHA WIRE 1565 BL005	Hook-Up	0.016 in	0.41 mm	Blue	MIL-W-76B Type MW	0.072 in	1.83 mm	30.5 m	100 ft	18 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	1000 V	Solid
ALPHA WIRE 1565 WH001	Hook-Up	0.016 in	0.41 mm		MIL-W-76B Type MW	0.072 in	1.83 mm			18 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	1000 V	Solid	1000 ft	304.8 m
ALPHA WIRE 1565 OR001	Hook-Up	0.016 in	0.41 mm	Orange	MIL-W-76B Type MW	0.072 in	1.83 mm			18 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	1000 V	Solid	1000 ft	304.8 m
ALPHA WIRE 1565 SL001	Hook-Up	0.016 in	0.41 mm	Slate	MIL-W-76B Type MW	0.072 in	1.83 mm			18 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	1000 V	Solid	1000 ft	304.8 m
ALPHA WIRE 1565 YL001	Hook-Up	0.016 in	0.41 mm	Yellow	MIL-W-76B Type MW	0.072 in	1.83 mm			18 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	1000 V	Solid	1000 ft	304.8 m
ALPHA WIRE 1565 BK001	Hook-Up	0.016 in	0.41 mm	Black	MIL-W-76B Type MW	0.072 in	1.83 mm			18 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	1000 V	Solid	1000 ft	304.8 m
ALPHA WIRE 1565 OR005	Hook-Up	0.016 in	0.41 mm	Orange	MIL-W-76B Type MW	0.072 in	1.83 mm	30.5 m	100 ft	18 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	1000 V	Solid
ALPHA WIRE 1565 RD001	Hook-Up	0.016 in	0.41 mm	Red	MIL-W-76B Type MW	0.072 in	1.83 mm			18 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	1000 V	Solid	1000 ft	304.8 m
ALPHA WIRE 1565 BL001	Hook-Up	0.016 in	0.41 mm	Blue	MIL-W-76B Type MW	0.072 in	1.83 mm			18 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	Copper Tinned	1000 V	Solid	1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 124.58
		3	$ 115.42
		5	$ 109.32
		10	$ 103.21
		25	$ 95.88
		50	$ 90.99
		100	$ 79.39

Description

General part information

1565 Series

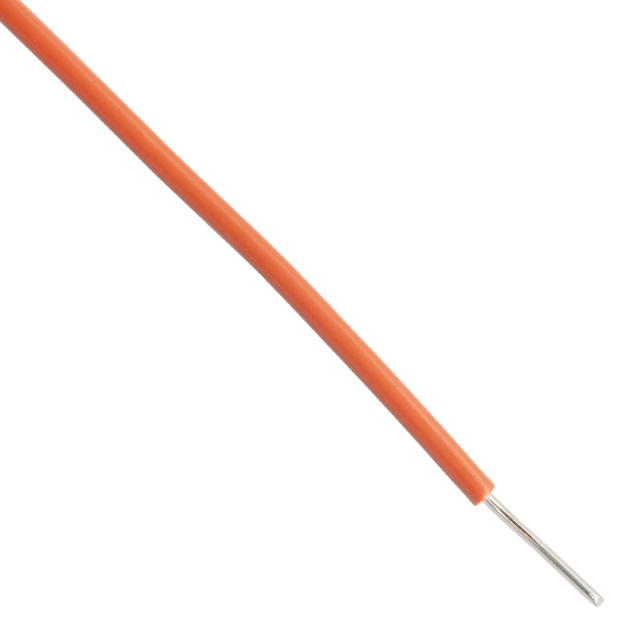

18 AWG Hook-Up Wire Solid Orange 1000V 100.0' (30.5m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet
