EXP-0921/07/S
ActiveBULGIN LIMITED

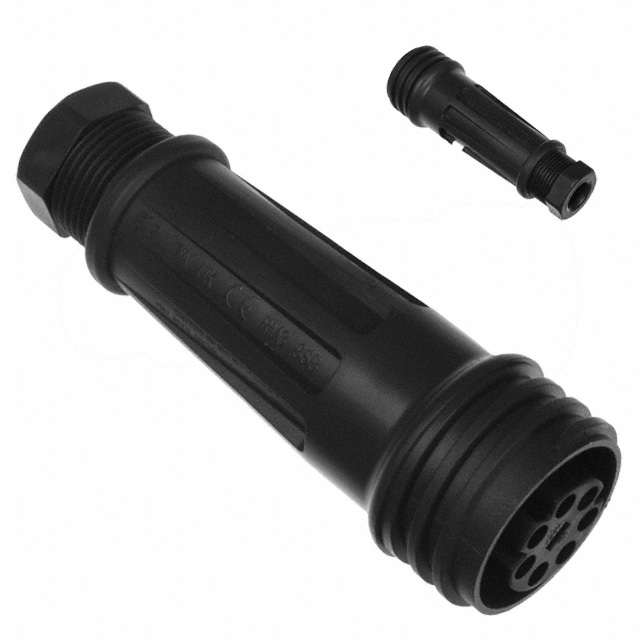

CIRCULAR CONNECTOR, EXPLORA SERIES, RECEPTACLE, 7, SOCKET, SCREW, CABLE MOUNT ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
EXP-0921/07/S
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, EXPLORA SERIES, RECEPTACLE, 7, SOCKET, SCREW, CABLE MOUNT ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EXP-0921/07/S |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Polyester |
| Cable Opening [Max] [custom] | 15 mm |
| Cable Opening [Max] [custom] | 0.591 in |
| Cable Opening [Min] [custom] | 13 mm |
| Cable Opening [Min] [custom] | 0.512 in |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 16 A |
| Features | UV Resistant, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyester |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 430 VAC/DC |
EXP-0921 Series
| Part | Contact Material | Orientation | Mounting Type | Material Flammability Rating | Termination | Shielding | Primary Material | Contact Finish - Mating | Features | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Color | Voltage Rating | Ingress Protection | Number of Positions | Applications | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Connector Type | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | Brass | Keyed | Free Hanging (In-Line) | UL94 V-0 | Screw | Unshielded | Plastic | Nickel | Backshell UV Resistant | 13 mm | 15 mm | 0.512 in | 0.591 in | Black | 600 VAC | IP68 - Dust Tight Waterproof | 2 | Industrial | Polyester | 55 °C | -20 C | Polyester | Male Pins Receptacle | 18 A | ||||
BULGIN LIMITED | Brass | Keyed | Free Hanging (In-Line) | UL94 V-0 | Screw | Unshielded | Plastic | Nickel | Backshell UV Resistant | 13 mm | 15 mm | 0.512 in | 0.591 in | Black | 600 VAC | IP68 - Dust Tight Waterproof | Industrial | Polyester | 55 °C | -20 C | Polyester | Receptacle Female Sockets | 18 A | 1 | 3 | 4 | ||
BULGIN LIMITED | Brass | Keyed | Free Hanging (In-Line) | UL94 V-0 | Screw | Unshielded | Plastic | Nickel | Backshell UV Resistant | 13 mm | 15 mm | 0.512 in | 0.591 in | Black | 430 VAC/DC | IP68 - Dust Tight Waterproof | 7 | Industrial | Polyester | 55 °C | -20 C | Polyester | Male Pins Receptacle | 16 A | ||||
BULGIN LIMITED | Brass | Keyed | Free Hanging (In-Line) | UL94 V-0 | Screw | Unshielded | Plastic | Nickel | Backshell UV Resistant | 13 mm | 15 mm | 0.512 in | 0.591 in | Black | 430 VAC/DC | IP68 - Dust Tight Waterproof | 7 | Industrial | Polyester | 55 °C | -20 C | Polyester | Receptacle Female Sockets | 16 A | ||||
BULGIN LIMITED | Brass | Keyed | Free Hanging (In-Line) | UL94 V-0 | Screw | Unshielded | Plastic | Nickel | Backshell Trailing Neutral UV Resistant | 13 mm | 15 mm | 0.512 in | 0.591 in | Black | 600 VAC | IP68 - Dust Tight Waterproof | 5 | Industrial | Polyester | 55 °C | -20 C | Polyester | Receptacle Female Sockets | 18 A | ||||
BULGIN LIMITED | Brass | Keyed | Free Hanging (In-Line) | UL94 V-0 | Screw | Unshielded | Plastic | Nickel | Backshell UV Resistant | 13 mm | 15 mm | 0.512 in | 0.591 in | Black | 600 VAC | IP68 - Dust Tight Waterproof | Industrial | Polyester | 55 °C | -20 C | Polyester | Male Pins Receptacle | 18 A | 2 | 3 | 1 | ||
BULGIN LIMITED | Brass | Keyed | Free Hanging (In-Line) | UL94 V-0 | Screw | Unshielded | Plastic | Nickel | Backshell UV Resistant | 13 mm | 15 mm | 0.512 in | 0.591 in | Black | 250 VAC | IP68 - Dust Tight Waterproof | 10 | Industrial | Polyester | 55 °C | -20 C | Polyester | Male Pins Receptacle | 10 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EXP-0921 Series
7 (6 Power + PE) Position Circular Connector Receptacle, Female Sockets Screw
