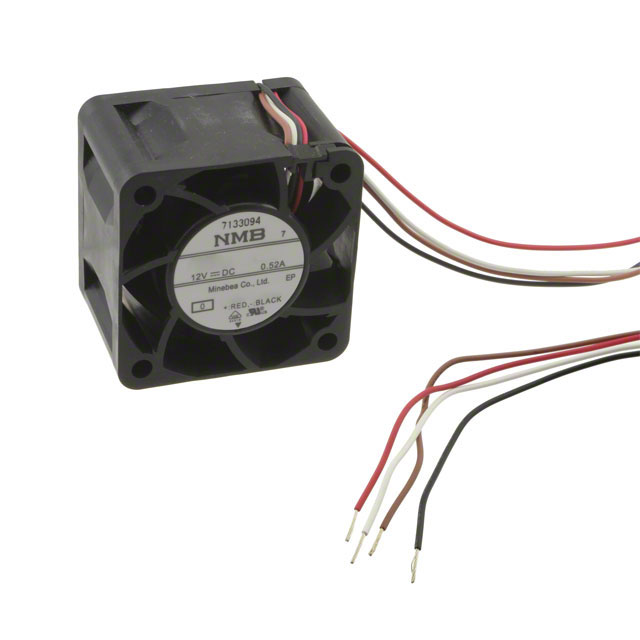

04028DA-12R-AUF-0

Active

NMB TECHNOLOGIES

FAN AXIAL 40X28MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFan Part Numbering Guide Datasheet

04028DA-12R-AUF-0

Active

NMB TECHNOLOGIES

FAN AXIAL 40X28MM 12VDC WIRE

Deep-Dive with AI

DocumentsFan Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	04028DA-12R-AUF-0

Air Flow	0.563 m³/min
Air Flow	20.1 CFM
Bearing Type	Ball
Current Rating (Amps)	430 mA
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	54.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	5.16 W
RPM	18000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	480.8 Pa
Static Pressure	1.93 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.117 lb
Weight	53.07 g
Width [y]	28 mm

04028DA Series

Part	Width [y]	Power (Watts)	Termination	Voltage - Rated	RPM	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	Material - Frame	Features	Lifetime @ Temp.	Fan Type	Noise	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Weight	Weight
NMB TECHNOLOGIES 04028DA-12P-AAF-0	28 mm	2.16 W	2 Wire Leads	12 VDC	12000 RPM	0.367 mł/min	13.1 CFM	Plastic	0.18 A	Plastic	Auto Restart	70000 Hrs	Tubeaxial	45 dB(A)	Ball	13.2 VDC	10.8 VDC	70 °C	70 °C	-10 °C	-10 °C	229.2 Pa	0.92 in H2O	40 mm	Square	40 mm
NMB TECHNOLOGIES 04028DA-12M-AAF-0	28 mm	3.12 W	2 Wire Leads	12 VDC	10000 RPM	0.476 m³/min	17 CFM	Plastic	0.26 A	Plastic	Auto Restart	70000 Hrs	Tubeaxial	44.5 dB	Ball	13.2 VDC	7 V	70 °C	70 °C	-10 °C	-10 °C	146.2 Pa	0.587 in H2O	40 mm	Square	40 mm
NMB TECHNOLOGIES 04028DA-12Q-AAF-0	28 mm	3.48 W	2 Wire Leads	12 VDC	15000 RPM	0.465 mł/min	16.6 CFM	Plastic	0.29 A	Plastic	Auto Restart	70000 Hrs	Tubeaxial	49.5 dB	Ball	13.2 VDC	10.8 VDC	70 °C	70 °C	-10 °C	-10 °C	341.2 Pa	1.37 in H2O	40 mm	Square	40 mm	0.117 lb	53.07 g
NMB TECHNOLOGIES 04028DA-12R-AAF-0	28 mm	10.2 W	2 Wire Leads	12 VDC	22000 RPM	0.577 mł/min	20.6 CFM	Plastic	0.85 A	Plastic	Auto Restart	70000 Hrs	Tubeaxial	62.8 dB	Ball	13.2 VDC	10.8 VDC	70 °C	70 °C	-10 °C	-10 °C	744.8 Pa	2.99 in H2O	40 mm	Square	40 mm
NMB TECHNOLOGIES 04028DA-12N-ATF-0	28 mm		3 Wire Leads	12 VDC				Plastic		Plastic	Auto Restart Speed Sensor (Tach)	70000 Hrs	Tubeaxial		Ball			70 °C	70 °C	-10 °C	-10 °C			40 mm	Square	40 mm
NMB TECHNOLOGIES 04028DA-12N-AAF-0	28 mm		2 Wire Leads	12 VDC				Plastic		Plastic	Auto Restart		Tubeaxial		Ball									40 mm	Square	40 mm
NMB TECHNOLOGIES 04028DA-12Q-ATF-0	28 mm	3.5 W	3 Wire Leads	12 VDC	15000 RPM	0.465 mł/min	16.6 CFM	Plastic	0.29 A	Plastic	Auto Restart Speed Sensor (Tach)	70000 Hrs	Tubeaxial	49.5 dB	Ball	13.2 VDC	10.8 VDC	70 °C	70 °C	-10 °C	-10 °C	341.2 Pa	1.37 in H2O	40 mm	Square	40 mm
NMB TECHNOLOGIES 04028DA-12R-AUF-0	28 mm	5.16 W	4 Wire Leads	12 VDC	18000 RPM	0.563 m³/min	20.1 CFM	Plastic	430 mA	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	70000 Hrs	Tubeaxial	54.5 dB	Ball	13.2 VDC	10.8 VDC	70 °C	70 °C	-10 °C	-10 °C	480.8 Pa	1.93 in H2O	40 mm	Square	40 mm	0.117 lb	53.07 g
NMB TECHNOLOGIES 04028DA-12R-ALF-0	28 mm	5.16 W	2 Wire Leads	12 VDC	18000 RPM	0.563 m³/min	20.1 CFM	Plastic	430 mA	Plastic	Auto Restart Locked Rotor Sensor	70000 Hrs	Tubeaxial	54.5 dB	Ball	13.2 VDC	10.8 VDC	70 °C	70 °C	-10 °C	-10 °C	480.8 Pa	1.93 in H2O	40 mm	Square	40 mm
NMB TECHNOLOGIES 04028DA-12R-ATF-0	28 mm	5.16 W	4 Wire Leads	12 VDC	18000 RPM	0.563 m³/min	20.1 CFM	Plastic	430 mA	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	70000 Hrs	Tubeaxial	54.5 dB	Ball	13.2 VDC	10.8 VDC	70 °C	70 °C	-10 °C	-10 °C	480.8 Pa	1.93 in H2O	40 mm	Square	40 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.22
		10	$ 14.53
		25	$ 13.66
		50	$ 13.14
		200	$ 12.10
		400	$ 11.33
		600	$ 11.15
Newark	Each	1	$ 17.38
		800	$ 16.28
		1200	$ 15.72
		2000	$ 15.45
		2400	$ 15.15
		5200	$ 14.92
		10000	$ 14.42

Description

General part information

04028DA Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 20.1 CFM (0.563m³/min) 4 Wire Leads
