2P9C

Active

HELLERMANNTYTON

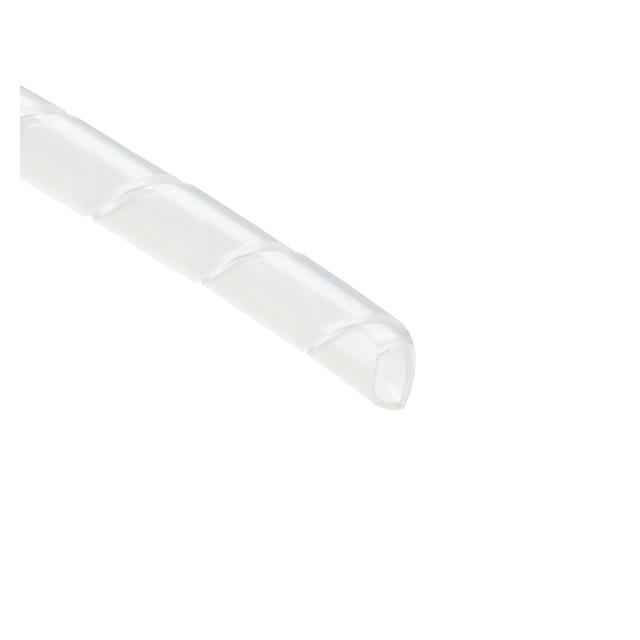

SPIRAL WRAP, 0.25 ", 6.35 MM, PTFE (POLYTETRAFLUOROETHYLENE), NATURAL, 100 FT, 30.5 M

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SPIRAL WRAP, 0.25 ", 6.35 MM, PTFE (POLYTETRAFLUOROETHYLENE), NATURAL, 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	2P9C

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded [diameter]	2 in
Diameter - Inside, Expanded [diameter]	50.8 mm
Diameter - Outside, Non-Expanded [diameter]	6.35 mm
Diameter - Outside, Non-Expanded [diameter]	0.25 in
Features	Chemical Resistant
Length	100 ft
Length	30.48 m
Material	Polytetrafluoroethylene (PTFE)
Material Flammability Rating	Non Flammable
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-268 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness [custom]	0.03 in
Wall Thickness [custom]	0.76 mm

Part	Type	Length	Length	Material	Color	Features	Wall Thickness [custom]	Wall Thickness [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Type Attributes	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material Flammability Rating	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]
HELLERMANNTYTON 2P9C	Spiral Wrap	100 ft	30.48 m	Polytetrafluoroethylene (PTFE)	Natural	Chemical Resistant	0.03 in	0.76 mm	260 ░C	-268 °C	Harness	Abrasion Resistant	2 in	50.8 mm	Non Flammable	6.35 mm	0.25 in
