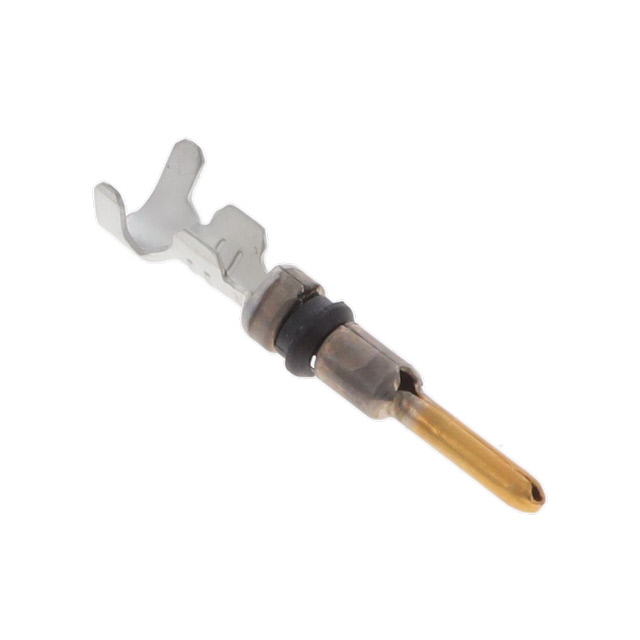

121668-0267

Active

ITT Cannon, LLC

APK-PA16G15-002-C (5000)

Search across all available documentation for this part.

Active

ITT Cannon, LLC

APK-PA16G15-002-C (5000)

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Termination Finish	Type	Contact Type	Contact Finish Thickness	Contact Termination	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Accessory Type	Color	For Use With/Related Products	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Size	Features	Contact Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
ITT Cannon, LLC 121668-0022	Gold	Gold	Signal Stamped	Socket	Flash	Crimp	1.5 mm²	0.5 mm²
ITT Cannon, LLC 121668-0033									Wire Seal	Blue	APD 4-Way Connectors
ITT Cannon, LLC 121668-0222-PC	Tin	Tin	Stamped	Socket		Crimp	1.5 mm²	0.75 mm²
ITT Cannon, LLC 121668-0126	Tin	Tin	Power Stamped	Socket		Crimp	2.5 mm²	1.5 mm²				14 AWG	16 AWG
ITT Cannon, LLC 121668-0125	Tin	Tin	Power Stamped	Socket		Crimp	1.5 mm²	0.5 mm²				16 AWG	18 AWG
ITT Cannon, LLC 121668-0268/PC	Gold		Signal Stamped	Socket		Crimp	1.5 mm²	0.75 mm²				16 AWG	18 AWG	31.5 µin	0.8 µm	16	Insulation Support	Copper Alloy
ITT Cannon, LLC 121668-0267	Gold	Gold	Machined Signal	Pin		Crimp	1.5 mm²	0.75 mm²						31.5 µin	0.8 µm
ITT Cannon, LLC 121668-0002	Tin		Power Stamped	Pin		Crimp						12 AWG	14 AWG				Insulation Support		4 mm˛	2.5 mm˛
ITT Cannon, LLC 121668-0255	Tin	Tin	Machined Signal	Pin		Crimp	1.5 mm²	0.75 mm²
ITT Cannon, LLC 121668-0100	Tin		Power Stamped	Socket		Crimp	1 mm²	0.5 mm²				18 AWG	20 AWG				Insulation Support	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact Size Crimp Gold

Technical documentation and resources

No documents available
