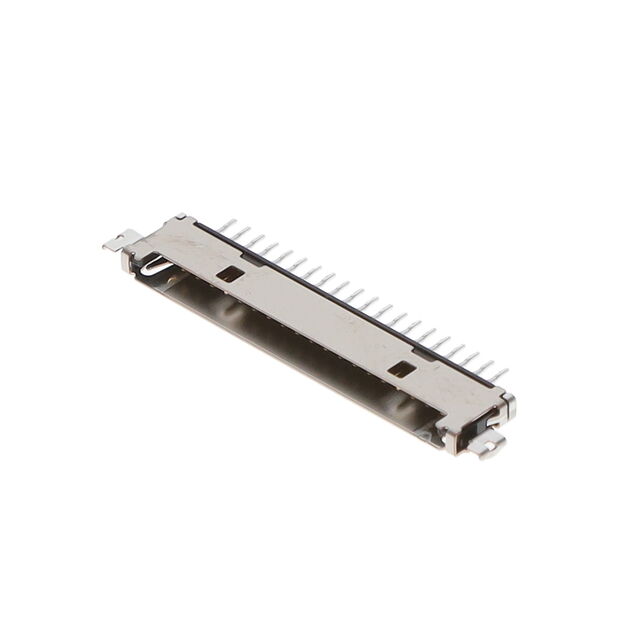

DF19K-20P-1H(52)

Active

Hirose Electric USA, Inc.

CONN HEADER BRD EDGE 20P 1MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HEADER BRD EDGE 20P 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF19K-20P-1H(52)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3.94 µin
Contact Finish Thickness - Mating	0.1 µm
Contact Finish Thickness - Post	3.94 Áin
Contact Finish Thickness - Post	0.1 Ám
Contact Material	Phosphor Bronze
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.057 in
Insulation Height	1.45 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Board Edge, Cutout, Surface Mount, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

Part	Insulation Color	Voltage Rating	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Termination	Contact Material	Features	Material Flammability Rating	Number of Positions	Fastening Type	Number of Positions Loaded	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Rows	Mounting Type	Contact Finish - Mating	Shrouding	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)
Hirose Electric USA, Inc. DF19K-30P-1H(56)	Beige	100 V	Male Pin	0.039 in	1 mm	0.057 in	1.45 mm	Solder	Phosphor Bronze	Solder Retention	UL94 V-0	30	Friction Lock	All	Receptacle	-35 °C	85 °C	Nylon Polyamide (PA)	1	Board Edge Cutout Surface Mount Right Angle	Gold	Shrouded - 3 Wall	Board to Cable/Wire
Hirose Electric USA, Inc. DF19K-20P-1H(52)	Black	100 VAC	Male Pin	0.039 in	1 mm	0.057 in	1.45 mm	Solder	Phosphor Bronze	Solder Retention	UL94 V-0	20	Friction Lock	All	Receptacle	-35 °C	85 °C	Nylon Polyamide (PA)	1	Board Edge Cutout Surface Mount Right Angle	Gold	Shrouded - 3 Wall	Board to Cable/Wire	3.94 µin	0.1 µm	Gold	3.94 Áin	0.1 Ám	Varies by Wire Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Board Edge, Cutout; Surface Mount, Right Angle 20 position 0.039" (1.00mm)
